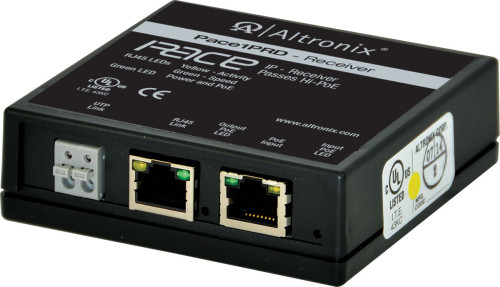

Pace1PRD

Long Range Ethernet Single Port Receiver, 100Mbps, Passes PoE/PoE+ 60W, Used w/ eBridge200WPM

The Pace1PRD is a long range Ethernet receiver. It is powered via a NetWay1D Single Port PoE Injector. The receiver passes 60W over the cable to the eBridge200WPM transceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over structured cable.

  • Input
    • Powered by NetWay1D PoE (60W) Injector.
  • Ethernet
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5e or a single twisted pair UTP.
    • Throughput is rated to pass 100Mbps of data.
  • CAT5e or Higher
    • Distance: up to 500m @ 100Mbps.
  • LED Indicators
    • Green - PoE ON (by respective RJ45 jack).
    • RJ45 jack: Yellow and Green LED IP Link status, 10/100Base-T/active.
  • Environmental
    • Operating Temperature: - 4° F to 120.2° F ( - 20° C to +49° C).
    • Storage Temperature: - 22° to 158° F ( - 30° to +70° C).
    • Relative humidity: 20 to 85%, non-condensing.
    • Operating Altitude: - 304.8 to 2000m.
  • Functions
    • Auto detection and protection of legacy non-PoE cameras/devices.
UL Listed For:
Information Technology Equipment (UL60950-1)
Download File
cUL Listed For:
Information Technology Equipment
Download File

CE Compliant

C-TICK Compliant
Enclosure:
  • Modular plastic case. VB6
  • Dimensions 3.5"W x 1"H x 3.5"D (88.89 mm W x 25.4 mm H x 88.89 mm D).
Weights (approximate):
  • Product Weight: 0.25 Lbs. (0.11 kg).
  • Shipping Weight: 0.42 Lbs. (0.19 kg).
