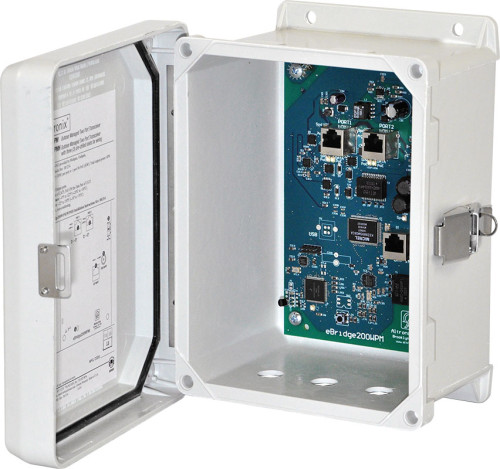

eBridge200WPM PoE Ethernet transceiver/media converter transmits data and power over Coax or CAT5 cable over distances that are 3 to 5 times greater than standard Ethernet. Upgrading existing Coax analog camera infrastructure to IP cameras is greatly simplified as well. eBridge200WPM can support up to two PoE or PoE+ cameras/devices or a single Hi-PoE (60W) device. The eBridge200WPM/WPMH offers built-in IP management which allows for remote camera reset, monitoring and reporting via various IP protocols. There is no need to install remote AC mains power, since these devices are simply powered from the low voltage PoE midspan/endspan equipment, such as Altronix NetWay midspans or eBridge100SPR.
|eBridge100RM||EoC or Long Range Ethernet Single Port Receiver, 100Mbps, Passes PoE/PoE+, Requires Compatible Transceiver|
|eBridge100SPR||EoC Single Port Receiver, 100Mbps, Generates PoE/PoE+/Hi-PoE 60W, 51-56VDC, Used w/ eBridge200WPM or eBridge4SPT|
|NetWay1D||Midspan Injector, Single Port, 10/100/1000, PoE/PoE+/Hi-PoE or 56VDC Aux. Output, 60W, 115/230VAC|
|Pace1PRD||Long Range Ethernet Single Port Receiver, 100Mbps, Passes PoE/PoE+/Hi-PoE 60W, Used w/ eBridge200WPM|
|PACE1PRM||Long Range Ethernet Single Port Receiver, 100Mbps per port, Passes PoE/PoE+, Requires Compatible Transceiver|
|PMK1||Pole Mount Kit, For Outdoor Enclosures|
|WG1||NEMA Rated Wire Gland Inlets|
