4 - Door Altronix/Brivo Access and Power Integration Rack Kit - Trove1AL1R with eFlow6RLB, VR6, ACMS8

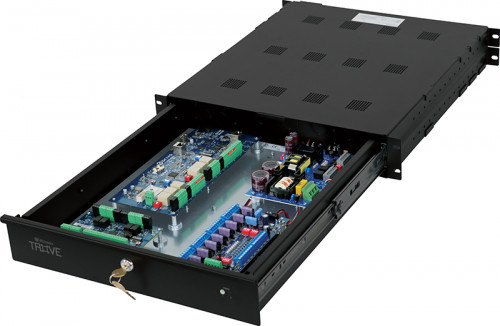

T1RBV3F4 kit consists of Trove1R enclosure and TAL1R backplane with 12VDC or 24VDC (factory set at 24VDC) @ 6A power supply/charger, and eight (8) fuse protected dual input/ output access control module. This kit also accommodates various combinations of Brivo boards for up to four (4) doors in a single rack enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • eFlow6RLB Power Supply/Charger
      • Input
        • Voltage: 120VAC, 60Hz.
        • Fusing: 5A / 250V
      • Output
        • Voltage: 24VDC
        • Current: 6A continuous
        • Other: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Type: Sealed lead acid or gel type
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately).
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
  • Indicators LED
    • Input: 120VAC is present.
    • DC Output: Powered.
    • Battery: Discharged or not connected.
  • VR6 Voltage Regulator
      • Input
        • Voltage: 24VDC from eFlow6RLB.
      • Output
        • Voltage: 12VDC.
        • Current: 6A continuous.
        • Other: Surge suppression.
      • Indicators (LED)
        • Input: 24VDC is present.
        • Output: Powered.
  • ACMS8 Dual Input Access Power Controller
      • Input
        • Voltage: 24VDC from eFlow6RLB and 12VDC from VR6.
        • Input Fuse: 15A / 32V.
      • Outputs
        • Voltage: 12 or 24VDC individually selectable.
        • Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs:
        • b) Form “C” Relays rated 28VAC or VDC @ 2.5A Rated.
        • c) Auxiliary power outputs (unswitched).
        • d) Any combination of the above.
        • Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
      • Outputs Ratings
        • Fuses: 3A/32V.
      • Indicators (LED's)
        • Red LEDs: Outputs are triggered (relays energized).
        • Blue LED: FACP disconnect is triggered.
        • Individual voltage LEDs:
        • Green: 12VDC.
        • Red: 24VDC.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 87 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.

TAA Compliant

NDAA Compliant

BAA Compliant
Name Qty Description Agency Listings
Trove1AL1R 1 Altronix Access and Power Integration Rack Mount Enclosure with Backplane, Trove1 Rack Series
eFlow6RLB 1 Power Supply Charger, With LED Cable Assembly, 12 or 24VDC @ 6A, 120VAC, Board
VR6 1 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
ACMS8 1 Dual Input Access Power Controller, 8 Fuse Protected Outputs, Board
Enclosure:
  • Trove Rack Mount Enclosure
  • Accommodates up to four (4) 12VDC/7AH Batteries.
  • Dimensions 19"W x 3.25"H x 26.5"D (482.6 mm W x 82.6 mm H x 673.1 mm D).
  • Rails extend to 36" (914.4mm).Ample knockouts for convenient use.
Weights (approximate):
  • Product Weight: 20 Lbs. (9.07 kg).
  • Shipping Weight: 25 Lbs. (11.34 kg).
Print

Access controllers not included

*Batteries sold separately
