T2DK7F16D

16-Door Altronix/DIN Rail Access and Power Integration Kit - Trove2DR2 with eFlow104NTB, Two (2) ACM8CB, PD8ULCB, Four (4) D10, RSB1

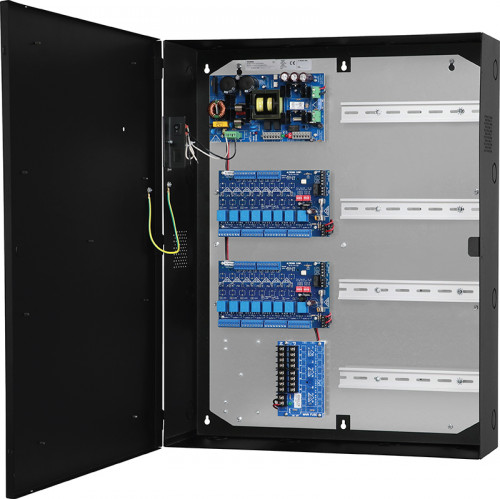

Altronix T2DK7F16D kit consists of Trove2 enclosure and TDR2 Altronix/DIN Rail backplane with 24VDC @ 10A power supply/charger, sixteen (16) PTC protected access control module and eight (8) PTC protected power distribution module. This kit also accommodates any DIN Rail mountable products for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • eFlow104NTB Power Supply/Charger
      • Input
        • Voltage: 120VAC, 60Hz, 4.5A max.
        • Input Fuse: 6.3A/250V
      • Outputs
        • Voltage: 24VDC
        • Current: 10A continuous
        • Auxiliary: 1A (unswitched)
        • Other: Overvoltage protection. Filtered and regulated
  • Battery Charging
    • Capacity: 12VDC/12AH (2 within enclosure), 40AH/65AH (requires separate enclosure)
    • Type: Sealed lead acid or gel type
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately).
  • Supervision
    • AC Failure: Form “C” contacts
    • Battery: Form “C” contacts
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge
  • Indicators LED
    • Input: 120VAC is present
    • DC Output: Powered
    • Battery: Discharged or not connected
  • PD8ULCB Power Distribution Module
      • Input
        • Voltage: 12VDC from eFlow104NTB
      • Outputs
        • Voltage: 24VDC
        • PTCs: 2.5A.
      • Indicators LED
        • Green LED: DC Output
  • Two (2) ACM8CB Dual Input Access Power Controllers
      • Input
        • Voltage: 24VDC from eFlow104NTB
        • Main Fuse: 10A / 250V.
      • Outputs
        • Voltage: 24VDC
        • Eight (8) 24VDC independently controlled PTC outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs; Form “C” Relays rated 28VAC or VDC @ 2.5A.
        • b) Auxiliary power outputs (unswitched)
        • c) Any combination of the above
        • Output PTCs: 2.5A.
      • Indicators (LED)
        • Red LEDs: Outputs are triggered (relays energized).
        • Green LED: FACP disconnect is triggered.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 145 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
TDR2 1 Trove2 Backplane for Altronix with DIN Rail streamlined package
eFlow104NTB 1 Power Supply/Charger Board with Removable AC Input Terminal Block
ACM8CB 2 Access Power Controller, 8 PTC Class 2 Relay Outputs, FAI, Board
PD8ULCB 1 Power Distribution Module, 8 PTC Outputs up to 28VAC/VDC, Board
D10 4 DIN Rail, 10" inch
RSB1 1 Single Power ON/OFF Rocker Switch with Mounting Bracket
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/12AH Batteries.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 40.1 Lbs. (18.2 kg).
  • Shipping Weight: 43.85 Lbs. (19.9 kg).
Print

Access controllers not included

*Batteries sold separately
