T2LMK7F8ND

8-Door Altronix/LiftMaster Access and Power Integration Kit - Trove2M2 with eFlow104NTB, ACMS8CB, VR6, PDS8CB, NetWay5P, Two (2) LMBK2. Trove2 Series

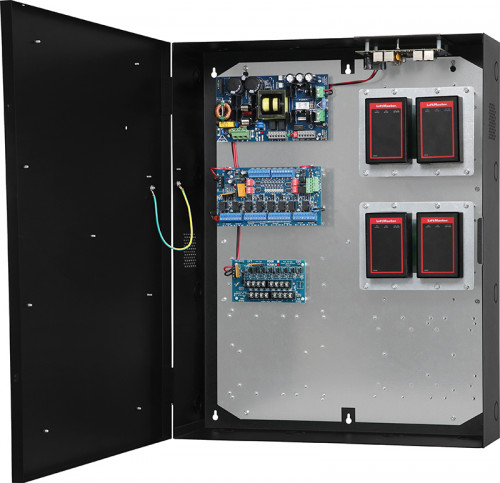

Altronix T2LMK7F8ND kit consists of Trove2 enclosure and TM2 Altronix & LiftMaster backplane with 24VDC @ 10A power supply/charger, 12VDC voltage regulator, eight (8) PTC protected output dual voltage power distribution module, eight (8) dual voltage PTC protected output access control module and 5-Port Hardened PoE+ Switch. This kit also accommodates up to four (4) LiftMaster Smart Access 2-Door Controller (CAP2D) for up to eight (8) doors in a single enclosure. Two (2) LMBK2 mounting brackets for LiftMaster CAP2D are factory installed. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • eFlow104NTB Power Supply/Charger
      • Input
        • Voltage: 120VAC, 60Hz, 4.5A max.
        • Input Fuse: 6.3A/250V
      • Outputs
        • Voltage: 24VDC.
        • Current: 10A continuous.
        • Auxiliary: 1A (unswitched).
        • Other: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Capacity: 12VDC/12AH (4 within enclosure), 40AH/65AH (requires separate enclosure).
    • Type: Sealed lead acid or gel type.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
  • Indicators LED
    • Input: 120VAC is present.
    • DC Output: Powered.
    • Battery: Discharged or not connected.
  • ACMS8CB Dual Input Access Power Controller
      • Input
        • Voltage: 24VDC from eFlow104NTB and 12VDC from VR6.
        • Input PTC: 9A.
      • Outputs
        • Voltage: 12VDC or 24VDC individually selectable.
        • Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs.
        • b) Form “C” Relays rated 28VAC or VDC @ 2.5A Rated.
        • c) Auxiliary power outputs (unswitched).
        • d) Any combination of the above.
        • Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
      • Outputs Ratings
        • PTCs: 2.5A.
      • Indicators (LED)
        • Red LEDs: Outputs are triggered (relays energized).
        • Blue LED: FACP disconnect is triggered.
        • Individual voltage LEDs:
        • Green: 12VDC.
        • Red: 24VDC.
  • VR6 Voltage Regulator
      • Input
        • Voltage: 24VDC from eFlow104NTB.
      • Output
        • Voltage: 12VDC.
        • Current: 6A continuous.
        • Other: Surge suppression.
      • Indicators LED
        • Input: 24VDC is present.
        • Output: Powered.
  • PDS8CB Dual Input Power Distribution Module
      • Input
        • Voltage: 12VDC from VR6 and 24VDC from eFlow104NTB.
        • Input PTC: 9A.
      • Outputs
        • Voltage: 12VDC and/or 24VDC.
        • Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
      • Outputs Ratings
        • PTCs: 2.5A.
      • Indicators (LED)
        • DC Output: Eight (8) individual output LEDs.
        • Green: 12VDC
        • Red: 24VDC.
  • NetWay5P 5-Port PoE+ Hardened Switch
      • Input Power
        • 24VDC from eFlow104NTB
      • Power Output
        • Maximum Power: Four (4) 10/100/1000 Mbps, PoE/PoE+ (rated up to 30W) ports, 60W (at 12VDC) or 120W (at 24VDC) total power, Integral surge protection
        • Uplink Port: Single data port
      • Ethernet Ports:
        • Five (5) 10/100/1000 Mbps ports.
        • Connectivity: RJ45, auto-crossover.
        • Wire type: 4-pair CAT5 or better structured cable.
        • Distance: up to 100m.
        • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
      • Indicators (LED)
        • Individual PoE On LEDs for each port.
        • Individual IP Link status, 10/100Base-T/active LEDs for each port.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 145 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
TM2 1 Trove2 Backplane for Altronix & Mercury
eFlow104NTB 1 Power Supply/Charger Board with Removable AC Input Terminal Block
ACMS8CB 1 Dual Input Access Power Controller, 8 PTC Protected Outputs, Board
VR6 1 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
PDS8CB 1 Dual Input Power Distribution Module, 8 PTC Outputs
NetWay5P 1 Unmanaged Network 5-Port Hardened PoE+ Switch Board
LMBK2 2 Bracket for Two (2) LiftMaster 2-CAP2D
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 40.1 Lbs. (18.2 kg).
  • Shipping Weight: 43.85 Lbs. (19.9 kg).
Print

Access controllers not included

*Batteries sold separately
