T2MK7F8SQ

8-Door Altronix/Mercury Access and Power Integration Kit - Trove2M2 with eFlow104NB, LINQ8ACM, VR6, LINQ8PD, NetWay5B, BR1, RSB1

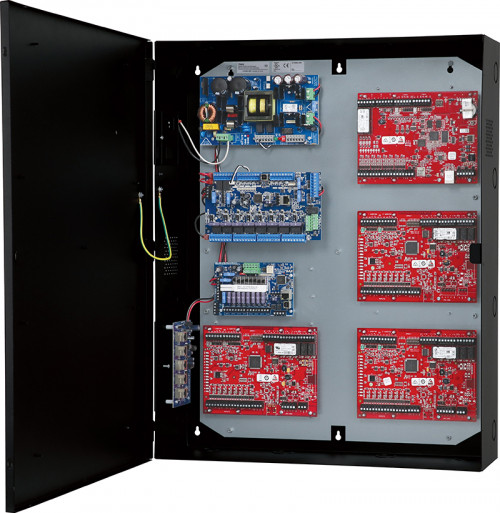

Altronix T2MK7F8SQ kit consists of Trove2 enclosure and TM2 Altronix & Mercury backplane with 24VDC @ 10A power supply/charger, 12VDC voltage regulator, eight (8) fuse protected output managed dual voltage power distribution module, eight (8) fuse protected output managed dual voltage access control module and 5-port hardened switch. This kit also accommodates various combinations of Mercury* boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt

  • eFlow104NB Power Supply/Charger
      • Input
        • Voltage: 120VAC, 60Hz. 4.5A max.
        • Input Fuse: 6.3A / 250V.
      • Outputs
        • Voltage: 24VDC @ 10A.
        • Auxiliary: 1A (unswitched).
        • Protection: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Capacity: 12VDC/12AH (4 within enclosure); 40AH/65AH (requires separate enclosure)
    • Type: Sealed lead acid or gel type
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately).
  • Fire Alarm Disconnect
    • Supervised: Latching or non-latching
    • EOL 10K Resistor
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. (depending on the power supply). Prevents deep battery discharge.
  • Indicators LED
    • AC Input: 120VAC is present.
    • DC Output: 24VDC is present.
    • Battery: Discharged or not connected.
  • LINQ8ACM Networked Access Power Controller
      • Input
        • Voltage: 24VDC from eFlow104NB and 12VDC from VR6
        • Input Fuses: 15A/32V
      • Outputs
        • Fuse protected outputs
        • Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2
        • Individual outputs may be set to OFF position for servicing
      • Output Fuses:
        • 3A/32V
  • Programming Features:
      • Eight (8) Programmable Outputs:
        • - Fail-safe, fail-secure or auxiliary outputs
        • - Input controlled or manually controlled through software
        • - High (over) and low (under) voltage and current monitoring by output
        • - Multiple outputs may be programmed to be triggered by a single input
        • - Battery back-up by output
      • Eight (8) Programmable Trigger Inputs:
        • - Normally open (NO), Normally closed (NC) or Open collector sink inputs
        • - Wet Input (5VDC - 24VDC) with 10k resistor
        • - Any combination of the above
      • Other Programmable Trigger Inputs:
        • - Monitor power supply(ies) input for voltage and current limits (high/low)
        • - Input and output current calibration, Programmable timer events
        • - Programmable user levels, Enable or disable alerts by type
        • - Programmable alert reporting delay
      • Indicators (LED)
        • Green AC LED: indicates AC trouble condition
        • Green BAT LED: indicates battery trouble condition
        • Green FACP LED: indicates FACP disconnect is triggered
        • Flashing Blue Heartbeat LED: indicates network connection
        • Individual OUT1 - OUT8 Red LEDs: indicate outputs are triggered
        • Individual Voltage LEDs: indicate 12VDC (Green) or 24VDC (Red)
  • VR6 Voltage Regulator
      • Input
        • Voltage: 24VDC from eFlow104NB
      • Output
        • Voltage: 12VDC.
        • Current: 6A continuous.
        • Other: Surge suppression.
      • Indicators LED
        • Input: 24VDC is present.
        • Output: Powered.
  • LINQ8PD Network Power Distribution Module
      • Input
        • Voltage: 24VDC from eFlow104NB and 12VDC from VR6
        • - Input Fuses: 15A/32V
      • Outputs
        • Fuse protected outputs.
        • Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2
        • Individual outputs may be set to OFF position for servicing
      • Output Ratings:
        • 3A/32V
      • Status Monitoring
        • Power Supply output voltage and load, Voltage and load of each output
        • FACP trigger and reset status, Unit temperature (Celsius)
        • Power Supply AC and Battery status, Battery health
      • Reporting:
        • Windows Dashboard Alert messages
        • E-mail notifications, Event Log tracks history
      • Indicators (LED)
        • Bat Local: Charging current status
        • FACP: Triggered / Released
        • Input: Input signal
        • Out1 - Out8: Output status
  • NetWay5B 5-Port Hardened Switch
      • Input
        • 12VDC, current draw: 150mA
      • Ethernet Ports:
        • Five (5) 10/100/1000 Mbps data ports.
        • Connectivity: RJ45, auto-crossover.
        • Wire type: 4-pair CAT5 or better structured cable.
        • Distance: up to 100m.
        • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
      • Indicators (LED)
        • Individual PoE On LEDs for each port.
        • Individual IP Link status, 10/100Base-T/active LEDs for each port.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 145 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.

TAA Compliant

NDAA Compliant

BAA Compliant
Name Qty Description Agency Listings
Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
TM2 1 Trove2 Backplane for Altronix & Mercury
eFlow104NB 1 Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
LINQ8ACM 1 Network Access Power Controller, 8 Fused Outputs, Board
VR6 1 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
LINQ8PD 1 Networkable Power Distribution Module, 8 Fused Outputs, Control, Monitor and Report Individual Output Diagnostics
NetWay5B 1 5-Port Hardened Switch Board
BR1 1 Add-On Mounting Bracket
RSB1 1 Single Power ON/OFF Rocker Switch with Mounting Bracket
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 40.1 Lbs. (18.2 kg).
  • Shipping Weight: 43.85 Lbs. (19.9 kg).
