T2SH75XK1DQ2P

16-Door Altronix/Software House Access and Power Integration Wired Kit - Trove3SH3 with eFlow104NB, eFlow102NB, LINQ2, NetWay5A, LINQ8PDCB, RSB2, Wire harnesses and finger ducts for one (1) iStar Ultra GCM/GCM G2 and two (2) iStar Ultra ACM

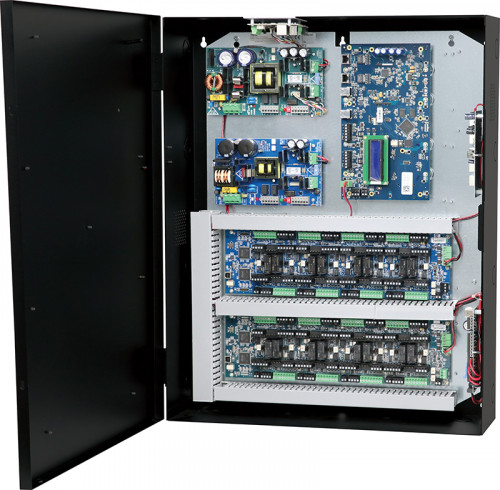

Altronix T2SH75XK1DQ2P is a 8-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Software House hardware. This unit provides ample power and dual voltage outputs to support Software House platform controllers and locking devices. The T2SH75XK1DQ2P accommodates one (1) iStar Ultra GCM/GCM G2 and two (2) iStar Ultra ACM Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.

  • eFlow104NB Power Supply/Charger - 1
      • Input
        • Voltage: 120VAC, 60Hz, 4.5A.
        • Input Fuse: 6.5A / 250V.
      • Output
        • Voltage: 24VDC @ 10A.
        • Auxiliary: 1A (unswitched).
        • Protection: Overvoltage protection. Filtered and regulated.
  • eFlow102NB Power Supply/Charger - 2
      • Input
        • Voltage: 120VAC, 60Hz, 3.5A.
        • Input Fuse: 5A / 250V.
      • Output
        • Voltage: 12VDC @ 10A.
        • Auxiliary: 1A (unswitched).
        • Protection: Overvoltage protection. Filtered and regulated.
  • Both Power Supplies
      • Battery Charging
        • Capacity: 12VDC/12AH (4 within enclosure); 40AH/65AH (requires separate enclosure).
        • Type: Sealed lead acid or gel type.
        • Failover: Upon AC loss, instantaneous.
        • (Batteries are sold separately).
      • Fire Alarm Disconnect
        • Supervised: Latching or non-latching.
        • EOL: 10K Resistor.
      • Supervision
        • AC Failure: Form “C” contacts.
        • Battery: Form “C” contacts.
        • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
      • Indicators LED
        • AC Input: 120VAC is present.
        • DC Output: Powered.
        • Battery: Discharged or not connected.
  • LINQ2 Network Communication Module
      • Status Monitoring
        • AC status; Output current draw; Unit’s temperature;
        • DC output voltage; Low Battery/Battery presence detection.
        • Input trigger state change; Output (relay and power supply) state change
      • Programming
        • Battery service date indication
        • Programmable via USB or web browser
        • Automated timed events:
        • - Control output relays and power supply via flexible timing parameter
      • Reporting
        • Programmable dashboard notifications
        • E-mail notification selectable by event
        • Event log tracks history (100+ events)
      • Indicators (LED)
        • Blue LED: Power ON
  • NetWay5A 5-Port Hardened Switch
      • Input
        • 12VDC, current draw: 150mA.
      • Ethernet Ports:
        • Five (5) 10/100 Mbps ports.
        • Connectivity: RJ45, auto-crossover.
        • Wire type: 4-pair CAT5 or better structured cable.
        • Distance: up to 100m.
        • Speed: 10/100 Mbps, half/full duplex, auto negotiation.
      • Indicators (LED)
        • Individual PoE On LEDs for each port.
        • Individual IP Link status, 10/100Base-T/active LEDs for each port.
  • LINQ8PDCB Network Power Distribution Module
      • Input
        • Voltage: 24VDC from eFlow104NB and 12VDC from eFlow102NB
        • Input Fuses: 15A/32V
      • Outputs
        • Output Ratings: PTC outputs rated 2.5A
        • Other: Power output can be locally or remotely controlled
        • Surge suppression
      • Status Monitoring
        • Power Supply output voltage and load, Voltage and load of each output
        • FACP trigger and reset status, Unit temperature (Celsius)
        • Power Supply AC and Battery status, Battery health
      • Indicators (LED)
        • Bat Local: Charging current status
        • FACP: Triggered / Released
        • Input: Input signal
        • Out1 - Out8: Output status
      • Reporting:
        • Windows Dashboard Alert messages
        • E-mail notifications, Event Log tracks history
  • Programming Features
    • Power Supply(ies) voltage and load limits (High/Low).
    • FACP trigger type (wet or dry-N.O./N.C.).
    • Input Function (FACP reset/tamper).
    • Output Reset Trigger (N.O./N.C.).
      • Battery Monitor Configuration:
        • Battery condition (Low/Normal/Missing)
        • Service Date
    • Configurable Output Relay(s).
      • Individual Output Configuration:
        • Device ID
        • Voltage and Current Limits (High/Low)
        • FACP Trigger Setting (latching/non-latching/inactive)
        • Battery Backup.
  • Fire Alarm Interface
    • Supervised FACP disconnect (Latching or Non-Latching).
    • FACP reset (N.C. or N.O.).
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 217 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.

TAA Compliant

NDAA Compliant

BAA Compliant
Name Qty Description Agency Listings
Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
TSH2 1 Trove2 Backplane for Altronix/Software House
eFlow104NB 1 Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
eFlow102NB 1 Power Supply Charger, Single Output, 12VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
LINQ2 1 Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers
NetWay5A 1 5-Port Hardened Switch Board
LINQ8PDCB 1 Networkable Power Distribution Module, 8 PTC Outputs, Control, Monitor and Report Individual Output Diagnostics
RSB2 1 Dual Power ON/OFF Rocker Switches with Mounting Bracket
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 54.3 Lbs. (24.6 kg).
  • Shipping Weight: 59.3 Lbs. (26.9 kg).
Configure Trove Print

Access controllers not included

*Batteries sold separately
