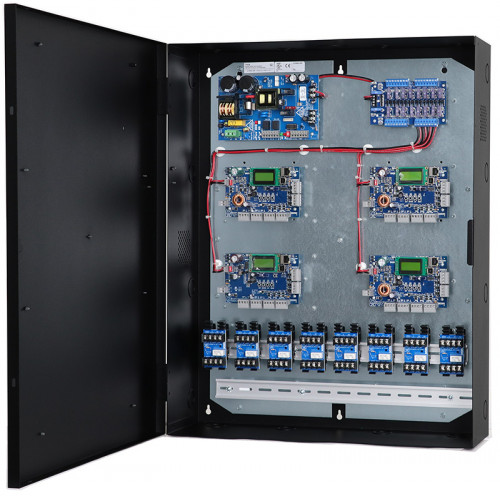

TempoA8RB

8-Door Occupancy Alert System

Altronix TempoA8RB is designed to alert management when unauthorized loitering occurs in up to eight (8) secure rooms. Unit features the ability for external notifications (occupied/ unoccupied). TempoA8RB has built-in LINQ Technology to remotely monitor, control and report power/diagnostics.

  • Power Supply/Charger (eFlow6NB):
      • Input
        • Voltage 120VAC, 60Hz. 3.5A
        • Input Fuse: 5A/250V
      • Output
        • Voltage: 24VDC
        • Current: 6A continuous
        • Auxiliary: 1A (unswitched)
        • Other Overvoltage protection. Filtered and regulated
  • Battery Charging
    • Capacity: 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure)
    • Type Sealed lead acid or gel type
    • Failover Upon AC loss, instantaneous
    • (Batteries are sold separately).
  • Supervision
    • AC Failure: Form “C” contacts
    • Battery Form “C” contacts
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply); Prevents deep battery discharge
  • Indicators LED
    • Input: 120VAC is present
    • DC Output: Powered
    • Battery Discharged or not connected
  • Eight (8) Relay Modules (RBSN):
      • Input
        • Voltage: 12VDC or 24VDC operation
        • Current Draw 15mA
      • Contact Rating
        • 1A/120VAC or 2A/28VDC
        • DPDT Contacts
  • Four (4) Two (2) Door Occupancy Alert Modules (TempoA2B):
      • Input Power Options
        • Input:
        • 24VAC/50VA transformer or 24VDC
        • Trigger:
        • Two (2) Door Sensor/Trigger inputs
        • Two (2) Strobe “Steady” Trigger Inputs
        • Two (2) Strobe “Flash” Trigger Inputs
        • Two (2) “Panic/Emergency” Trigger Inputs
        • Output Options:
        • 12VDC/2.5A, 24VDC/1.25A, (30W)
        • Two (2) Strobe Switched Power Outputs
        • Four (4) Aux. Power Outputs
      • Timer
        • Alphanumeric LCD display simplifies programming.
        • EE Prom memory protects against loss of programming due to power failure
        • Momentary and/or Latching Events
      • Battery Charging
        • Type: Sealed lead acid or gel type
        • Failover: Upon AC loss, instantaneous
        • Batteries are sold separately
      • Indicators (LED)
        • AC Power (Green): Input voltage is present
        • DC Output (Red): 12/24VDC is on
        • Trigger: Active
      • LINQ Technology:
        • Remote network management allows for device reset and monitoring
        • Provides local and/or remote access to critical information via LAN/WAN
        • Email and Windows Dashboard Alert notifications report real-time diagnostics
        • Event log tracks history
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 87 BTU/Hr.

CE Compliant

Components of this kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.

TAA Compliant

NDAA Compliant

BAA Compliant
Name Qty Description Agency Listings
Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
TV2 1 Trove2 Backplane for Altronix/HID-Vertx
eFlow6NB 1 Power Supply Charger, Single Output, 12/24VDC @ 6A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
PDS16 1 Dual Input Power Distribution Module, 16 Fused Outputs
TempoA2B 4 Occupancy Alert System, Board
RBSN 8 Relay Module, 12/24VDC, DPDT Contacts @ 1A - 120VAC or 2A - 28VDC
D19 2 DIN Rail, 19" inch
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 54.3 Lbs. (24.6 kg).
  • Shipping Weight: 59.3 Lbs. (26.9 kg).
