Trove1AG1R

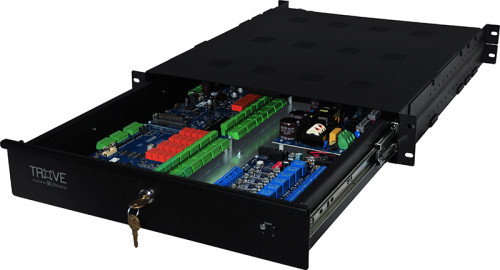

Altronix Access and Power Integration Rack Mount Enclosure with Backplane, Trove1 Rack Series

Altronix Trove1AG1R accommodates various combinations of Altronix power supply/charger boards and sub-assemblies with AMAG Symmetry M4000 boards.

  • Trove1R rack mount enclosure with TAG1R Altronix backplane.
      • Accommodates the following AMAG M4000 boards with Altronix power/accessories:
        • - Up to two (2) M4000-DEC4, M4000-IOC20/16.
        • - Altronix Power Supply/Charger;
        • - Altronix Sub-Assemblies.
        • Includes Altronix Trove1R Rack Enclosure and one (1) removable TAG1R backplane.
  • Trove1R Enclosure
    • 16 Gauge black powder coated steel enclosure with ample knockouts for convenient access.
    • Includes: tamper switch, cam lock and mounting hardware. Modular 2U standard EIA 19” drawer with extendable slides up to 48”.
    • IEC320 connector.
    • Included Z Bracket facilitates ease of wiring.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Enclosure:
  • Trove Rack Mount Enclosure
  • Dimensions 19"W x 3.25"H x 26.5"D (482.6 mm W x 82.6 mm H x 673.1 mm D).
  • Rails extend to 36" (914.4mm). Ample knockouts for convenient use.
Weights (approximate):
  • Product Weight: 18 Lbs. (8.16 kg).
  • Shipping Weight: 23 Lbs. (10.43 kg).
