Trove1SH1R

Altronix/Software House Access and Power Integration Rack Mount Enclosure with Backplane, Trove1 Rack Series

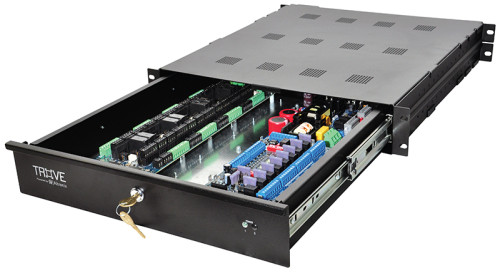

Altronix Trove1SH1R consists of a high-capacity rack enclosure with removable backplane. This unit easily combines Altronix power/accessories with various combinations of Software House iStar Ultra and iStar Pro boards in a streamlined package. Trove simplifies board layout and wire management, reducing installation time and labor costs.

  • Trove1R rack mount enclosure with TSH1R backplane.
      • Accommodates the following Software House controllers with or without Altronix power/accessories:
        • - Up to two (2) iStar Ultra ACM or two (2) iStar ACM SE
        • - One (1) iStar Edge
        • - Up to six (6) I8, R8 expansion modules
        • - Altronix Power Supplies
        • - Altronix Sub-Assemblies
        • Includes Altronix Trove1R Rack Enclosure and one (1) removable TSH1R backplane
  • Trove1R Enclosure
    • Power status LED for use where power and access control boards share the same enclosure
    • Simplifies board layout and wire management
    • Convenient knockout configuration:
    • - Four (4) double knockouts - 3/4” Conduit and 1” Conduit
    • - Two (2) double knockouts - 1/2” Conduit and 3/4” Conduit
    • 2U drawer on extendable rails
    • Included Z Bracket facilitates ease of wiring
    • 16 Gauge black powder coated steel enclosure with ample knockouts for convenient access
    • Includes: tamper switch, cam lock, IEC320 connector and mounting hardware

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Enclosure:
  • Trove Rack Mount Enclosure
  • Dimensions 19"W x 3.25"H x 26.5"D (482.6 mm W x 82.6 mm H x 673.1 mm D).
  • Rails extend to 36" (914.4mm). Ample knockouts for convenient use.
Weights (approximate):
  • Product Weight: 18 Lbs. (8.16 kg).
  • Shipping Weight: 23 Lbs. (10.43 kg).
