Trove2AG2

Altronix/AMAG Access and Power Integration Enclosure with Backplane, Trove 2 Series

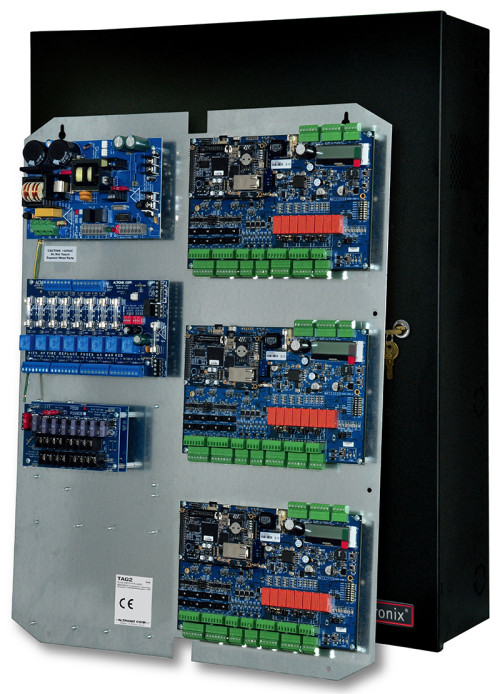

Altronix Trove2AG2 enclosure and backplane let you easily integrate Altronix power with AMAG M4000 access controllers and accessories. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • Trove2 enclosure with TAM2 Altronix/AMAG M4000 backplane
      • Backplane accommodates a combination of AMAG M4000 controllers with or without Altronix power/accessories:
        • - AMAG: M4000-DEC4, M4000-DEC4 w/M4000-DBB, M4000-IOC20/16 controllers
        • - Altronix Power Supplies
        • - Altronix PoE Switch
        • - Altronix Sub-Assemblies
        • Includes Altronix Trove2 Enclosure and one (1) removable TAM2 backplane
  • Trove2 Enclosure
    • Convenient knockout configuration:
    • - One (1) single knockout 2.415” (2” Conduit).
    • - Sixteen (16) double knockouts 1.362” (1” Conduit) / 1.115” (3/4” Conduit).
    • Accommodates up to four (4) 12VDC/12AH batteries
    • 16 Gauge powder coated steel
    • Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.
UL Listed For:
Access Control System Units (UL294)
View Certificate
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
View Certificate

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
TAM2 1 Trove2 Backplane for Altronix/AMAG
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 37.1 Lbs. (16.83 kg).
  • Shipping Weight: 40.85 Lbs. (18.53 kg).
Configure Trove Print

Boards not included
