Trove2M2WP

Altronix & Mercury/LenelS2 Access and Power Integration - NEMA 4/IP 66 Rated outdoor enclosure

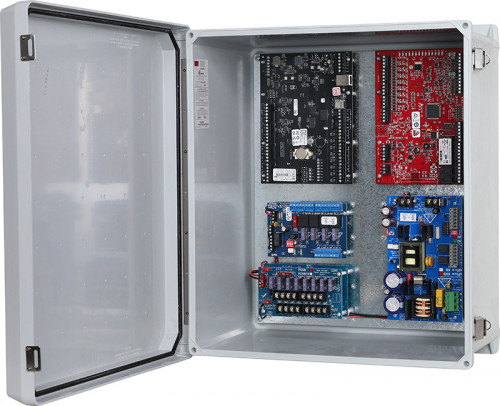

Altronix Trove2M2WP Outdoor Access and Power Integration Solution is a NEMA 4/IP 66 Rated outdoor enclosure with TM2X backplane that lets you easily integrate Altronix power with Mercury* access controllers and accessories. Trove simplifies board layout and wire management, reduces installation time and labor costs.

*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt

  • Trove2WP enclosure with TM2X Altronix/Mercury/LenelS2 backplane
      • Backplane accommodates a combination of Mercury/LenelS2 controllers with or without Altronix power/accessories:
        • - Mercury/LenelS2: LP1501, MR62e, MR50, LP1502, LP4502, MR52, MR16IN, MR16OUT, LP2500, MUX8
        • - Altronix Power Supplies
        • - Altronix Sub-Assemblies
        • Includes Altronix WP5 NEMA 4/IP 66 Rated outdoor enclosure and one (1) removable TM2X backplane
  • Trove2 Enclosure
    • Simplifies board layout and wire management
    • Hot compression molded, halogen free, self extinguishing fiberglass reinforced polyester
    • Stainless steel continuous hinge and stainless steel padlockable latches
    • Integral flanges simplify wall or pole mounting
    • Includes mounting hardware

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.

TAA Compliant

NDAA Compliant

BAA Compliant
Name Qty Description Agency Listings
WP5 1 NEMA 4/IP 66 Rated Power Supply/Battery Outdoor Enclosure, 19.31”H x 17.32”W x 9.58”D
TM2X 1 Altronix/Mercury/LenelS2 backplane only
Enclosure:
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
  • Accommodates up to two (2) 12VDC/7AH Batteries.
  • Dimensions 17.32"W x 19.31"H x 9.58"D (439.9 mm W x 490.4 mm H x 243.3 mm D).
Weights (approximate):
  • Product Weight: 15 Lbs. (6.8 kg).
  • Shipping Weight: 17.5 Lbs. (7.9 kg).
Configure Trove Print

Boards not included

*Batteries sold separately
