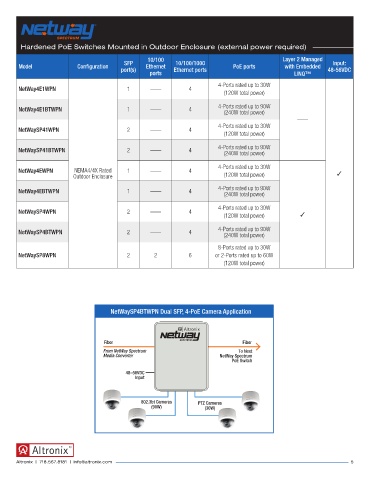

Page 5 - NetWay Spectrum Brochure

Hardened PoE Switches Mounted in Outdoor Enclosure (external power required)

10/100 Layer 2 Managed
SFP 10/100/1000 Input:
Model Configuration Ethernet PoE ports with Embedded
port(s) Ethernet ports 48-56VDC
ports LINQ™
4-Ports rated up to 30W
NetWay4E1WPN 1 --------- 4
(120W total power)
NetWay4E1BTWPN 1 --------- 4 4-Ports rated up to 90W
(240W total power)
4-Ports rated up to 30W
NetWaySP41WPN 2 --------- 4
(120W total power)
NetWaySP41BTWPN 2 --------- 4 4-Ports rated up to 90W ---------
(240W total power)
8-Ports rated up to 30W
NetWaySP81WPN 2 2 6 or 2-Ports rated up to 60W
(120W total power)
8-Ports rated up to 30W
NetWaySP81BTWPXN 2 4 4
(360W total power)
NEMA4/4X Rated 4-Ports rated up to 30W
NetWay4EWPN Outdoor Enclosure 1 --------- 4 3
(120W total power)
4-Ports rated up to 90W
NetWay4EBTWPN 1 --------- 4
(240W total power)
4-Ports rated up to 30W
NetWaySP4WPN 2 --------- 4
(120W total power)
4-Ports rated up to 90W 3
NetWaySP4BTWPN 2 --------- 4
(240W total power)
8-Ports rated up to 30W
NetWaySP8WPN 2 2 6 or 2-Ports rated up to 60W
(120W total power)
4-Ports rated up to 90W
NetWaySP8BTWXPN 2 --------- 8 and 4-Ports rated up to 30W
(360W total power)

NetWaySP4BTWPN Dual SFP, 4-PoE Camera Application

Fiber Fiber
From NetWay Spectrum To Next
Media Converter NetWay Spectrum
PoE Switch
48–56VDC
Input

802.3bt Cameras PTZ Cameras
(90W) (30W)

Altronix | 718.567.8181 | info@altronix.com 5
