NetWay4E1LWPX

Hardened Ethernet over Fiber PoE+ Switch with Optimized Lithium Iron Phosphate Battery Charger

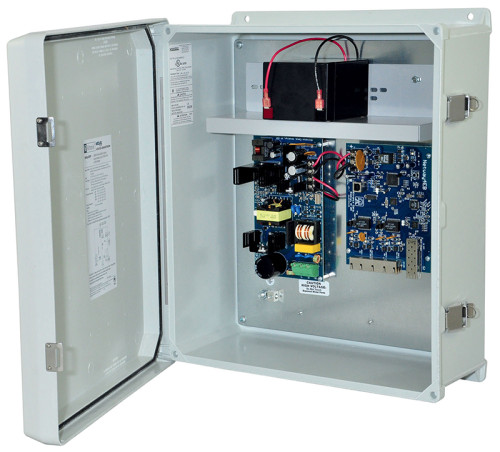

Altronix NetWay4E1LWPX PoE+ Outdoor Hardened Switch provides one (1) 1Gb SFP (Fiber) port and four (4) PoE+ (30W) ports passing data for PoE/PoE+ compliant devices. Cameras/edge devices may be located up to 100m from the unit. NetWay4E1LWPX is designed to support a single 12V LiFePO4 (Lithium Iron Phosphate) battery for high storage and charge/discharge cycle life reliability.

  • Input
    • 115VAC, 60Hz, 2.5A or 230VAC, 50/60Hz, 1.3A.
  • Power Output
    • Four (4) 10/100/1000 Mbps Ethernet ports rated at 30W each (limited to 75W total power).
    • IEEE 802.3af, 802.3at compliant.
    • Integral surge protection.
  • Fiber Port
    • One (1) Gigabit SFP port.
    • Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).
  • Ethernet Ports
    • Four (4) 10/100/1000 Mbps ports.
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5 or better structured cable.
    • Distance: up to 100m.
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
  • Battery Charging
    • Built-in charger for 12V LiFePO4 (Lithium Iron Phosphate) battery.
      Caution: Do not use lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    • (Batteries are sold separately).
  • LEDs
    • Individual PoE On LEDs for each port.
    • Individual IP Link status, 100/1000 Base-T/active LEDs for each port.
    • ALOS LED indicates fiber connection for SFP port.
    • Heartbeat LED indicates proper operation of the unit.
  • Environmental
      • Operating Ambient Temperature:
        • 60W: - 40ºC to 75ºC (- 40°F to 167°F);
        • 75W: - 40ºC to 70ºC (- 40°F to 158°F);
        • (if LiFePO4 battery is installed within enclosure, the temperature range is 0°C to 40°C (32°F to 104°F).
    • Storage Temperature: – 40ºC to 85ºC (– 40ºF to 185ºF).
    • Relative Humidity: 85%, +/– 5%
    • Operating Altitude: – 304.8 to 2,000m.
  • Mechanical
    • NEMA4/4X, IP66 Rated enclosure for outdoor use.
    • Accommodates one (1) 12V LiFePO4 (Lithium Iron Phosphate) battery.
      Note: LiFePO4 batteries have a restricted temperature range (0°C to 40°C).

CE Compliant
Enclosure:
  • NEMA 4/IP 66 Rated enclosure for outdoor use.
  • Dimensions 15.3"W x 17.53"H x 6.67"D (388.6 mm W x 445.3 mm H x 169.4 mm D).
Weights (approximate):
  • Product Weight: 15 Lbs. (6.8 kg).
  • Shipping Weight: 17.5 Lbs. (7.9 kg).
