NetWay8E

PoE Switch, 8-Port, 10/100/1000, 240W, Battery Charging, LINQ, 115/230, 1U

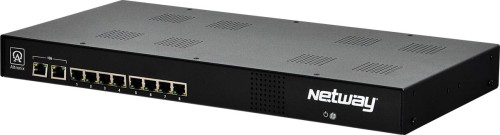

Altronix NetWay8E is an 8-port networked Managed Switch in a 1U rack enclosure. It provides PoE/PoE+ (up to 30W) power per port, and passes data at 10/100/1000 Mbps at distances up to 100m. Features also include an integral battery charger for applications requiring backup and embedded LINQ Technology to monitor, control, and report power and diagnostics from anywhere.

  • Input
    • 115VAC, 60Hz, 3.25A or 230VAC, 50/60Hz, 2.0A.
  • Power
    • Unit supplies PoE output voltage (55V) and up to 30W max. full power per port.
    • Total power: 240W
    • IEEE 802.3af and IEEE 802.3at compliant (PoE/PoE+).
    • Short circuit protection.
  • Ethernet Uplink
    • Two (2) 1Gb uplink (100/1000 Mbps.)
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5 or better structured cable.
    • Distance: up to 100m.
  • Ethernet
    • Eight (8) ports for cameras/edge devices over ethernet.
    • Wire type: 4-pair CAT5e and higher.
    • Speed: 10/100/1000 Mbps.
  • Functions
    • Programmble PoE shutdown for each port. Utilized to reset cameras/edge devices.
    • Auto detection and protection of legacy non-PoE cameras/edge devices.
  • Battery Charging
    • Built-in battery charger (optional rack mount battery enclosure - RE2).
    • Automatic switchover to stand-by battery when AC fails.
    • (Batteries are sold separately).
  • LINQ Technology
    • SSL (Secure Socket Layer) security encryption.
    • User level security.
    • Built-in IP management allows for remote camera reset and monitoring.
    • Provides local and/or remote access to critical information via LAN/WAN
    • Email and Windows Dashboard Alert notifications report real-time diagnostics.
    • Event log tracks history.
  • Temperature
    • Operating: - 20° C to 40° C ( - 4° F to 104° F).
    • Storage: - 20° to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 123 BTU/Hr.
    • Operating Altitude: - 304.8 to 3,048m ( - 1,000 to 10,000 ft.).
UL Listed For:
Information Technology Equipment (UL60950-1)
cUL Listed For:
Information Technology Equipment

CE Compliant
Enclosure:
  • Modular 1U standard EIA 19" rack mount chassis.
  • Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).
Weights (approximate):
  • Product Weight: 6.17 Lbs. (2.8 kg).
  • Shipping Weight: 7.5 Lbs. (3.4 kg).
