NetWaySP2PWPX

Single 1G Fiber Optic SFP, 2-port 10/100/1000, 30W each, Hardened 120W Power Supply/BatChr & Media Converter mounted in Larger NEMA4/4X, IP66 rated Outdoor enclosure

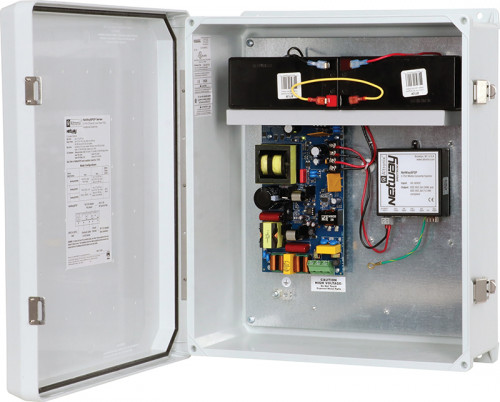

Altronix NetWaySP2PWPX 3-Port PoE+ hardened switch with internal power converts a single Fiber (1000Base-X/SX/LX) into two (2) Ethernet ports (10/100/1000 Mbps) and provides PoE/PoE+ power to connected devices. Mounted in NEMA 4/4X, IP66-11 enclosure, which accommodates four (4) 12VDC/4AH batteries (48V of backup) it features auto detection and protection of legacy non-PoE cameras/devices.

  • Input
    • 115VAC, 60Hz, 2.5A or 230VAC, 50/60Hz, 1.3A.
  • Fiber Ports
    • One (1) 1Gb SFP port.
  • Output Power
    • Two (2) PoE / PoE+ ports, rated up to 30W max.
    • IEEE 802.3af and IEEE 802.3at compliant.
  • Ethernet
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5e.
    • Distance: up to 100m.
    • Speed: 10/100/1000 Mbps.
  • Battery Charging
    • Capacity: 4AH/12VDC (4 within enclosure)
    • Type: Sealed lead acid or gel type
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately)..
  • Indicators (LED)
      • Yellow/Green LEDs:
        • IP Link status, 10/100/1000 Base-T/active.
      • Green PoE LED:
        • Indicate PoE present.
      • Green SFP (Fiber) LED:
        • Indicates SFP connection.
  • Features
    • Auto detection and protection of legacy non-PoE cameras/devices.
    • NEMA 4/4X, IP66-11 enclosure.
  • Temperature
    • Operating (30W): -40ºC to 70ºC ( -40ºF to 158ºF).
    • Storage: - 40ºC to 75ºC ( - 40º to 167ºF).
    • Relative Humidity: 85% +/- 5%.
  • Operating Altitude
    • - 304.8 to 2,000m.

CE Compliant
Enclosure:
  • NEMA 4/IP 66 Rated enclosure for outdoor use.
  • Accommodates up to four (4) 12VDC/4AH Batteries.
  • Dimensions 15.3"W x 17.53"H x 6.67"D (388.6 mm W x 445.3 mm H x 169.4 mm D).
Weights (approximate):
  • Product Weight: 15 Lbs. (6.8 kg).
  • Shipping Weight: 17.5 Lbs. (7.9 kg).
Print
*Batteries sold separately
