NetWaySP3LX

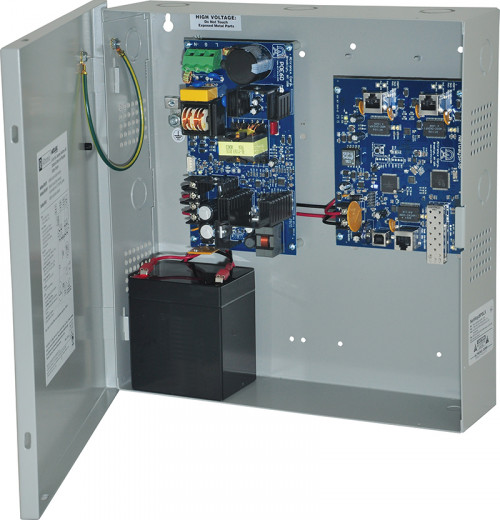

Fiber Optic SFP 1G Link, 3-port PoE+ switch and power supply. Accommodates one (1) 12V LiFePO4 battery. NEMA1 rated Indoor enclosure; LINQ

Altronix NetWaySP3LX PoE+ Hardened Switch provides a 1Gb SFP port and two (2) 60W ports and a single 30W port. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control, and report power and diagnostics from anywhere.

  • 3-port PoE+ Hardened Switch (NetWaySP3B)
      • Input
        • Voltage: 56VDC from POE60
      • Power Output
        • Maximum Power: Two (2) 60W ports (PoE/PoE+); One (1) 30W port (PoE/PoE+)
        • IEEE 802.3at (30W), IEEE 802.3af (15W) or 60W compliant
        • 120W total power
        • Integral surge protection
        • Fiber Port: One (1) Gigabit SFP port
      • Ethernet Ports
        • Three (3) 10/100/1000 Mbps ports
        • Connectivity: RJ45, auto-crossover
        • Wire type: 4-pair CAT5 or better structured cable
        • Distance: up to 100m
        • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
  • LINQ Technology
    • Remote network management allows for camera/device reset and monitoring.
    • Provides local and/or remote access to critical information via LAN/WAN.
    • Email and Windows Dashboard Alert notifications report real-time diagnostics.
    • Event log tracks history.
  • Indicators (LED)
    • Individual PoE On LEDs for each port.
    • Individual IP Link status, 10/100Base-T/active LEDs for each port.
    • ALOS LED indicates fiber connection for SFP port.
    • Heartbeat LED indicates proper operation of the unit.
  • Power Supply/Charger (POE60)
      • Input
        • Voltage: 115VAC, 60Hz, 2.5A or 230VAC, 50/60Hz, 1.3A
        • Input Fuse: 7.5A/250V
      • Output
        • Voltage: 56VDC/75W
        • Current: 1.3A continuous supply current
        • Maximum Power: 75W total power
        • Integral surge protection
      • Battery Charging
        • Type: 12V LiFePO4 (lithium iron phosphate)
        • Failover Upon AC loss, instantaneous
        • Charging Circuit: 12VDC, 0.75A
        • Batteries are sold separately
  • Temperature
      • Operating:
        • 60W: - 40° C to 75° C ( - 40° F to 167° F).
        • 75W: - 40° C to 70° C ( - 40° F to 158° F).
    • Storage: - 40° C to 85° C ( - 40° F to 185° F).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 46 BTU/Hr.
  • Operating Altitude
    • - 304.8 to 2,000m.

CE Compliant

TAA Compliant

NDAA Compliant

BAA Compliant
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to one (1) 13VDC/4.5AH Batteries.
  • Dimensions 12.5"W x 13"H x 3.25"D (317.5 mm W x 330.2 mm H x 82.6 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 6.65 Lbs. (3.02 kg).
  • Shipping Weight: 7.55 Lbs. (3.42 kg).
Print
*Batteries sold separately
