NetWaySP4TCW57

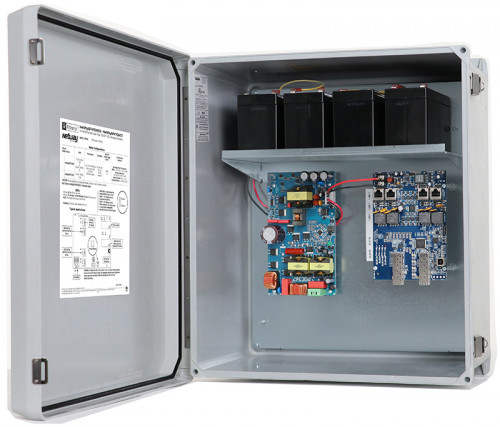

4-port 802.3bt Hardened Switch, Integral Power with Rapid Battery Charger - NEMA4/4X, IP66 rated Outdoor enclosure.

Altronix NetWaySP4TCW57 supports up to 90W per port (360W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and four (4) 802.3bt (90W) Ethernet ports. NetWaySP4TCW57 accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum head-end media converters/injectors. NetWaySP4TCW57 has an integrated rapid battery charger for extended battery run times. Embedded LINQ Technology allows to monitor, control, and report power and diagnostics from anywhere.

  • Input
    • Voltage: 230-277VAC, 50/60Hz, 1.75A.
    • Fusing: 5A/250V.
  • Power Output
      • Maximum Power:
        • Four (4) PoE ports rated at 90W each, 360W total power.
        • IEEE 802.3af (15W), IEEE 802.3at (30W), IEE 802.3bt (90W) compliant.
        • Integral surge protection.
  • SFP Ports
    • Two (2) Gigabit SFP port.
  • Ethernet Ports
    • Four (4) 10/100/1000 Mbps ports.
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5e or higher structured cable.
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
  • Battery Charging
    • Selectable 2A or 4A charging circuit.
    • Able to recharge 32AH or larger batteries in under 8 hours.
    • Low battery and battery presence supervision.
    • AC Fail supervision.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
    • (Vent2 Ventilation Kit is included).
  • Indicators (LED)
    • Individual PoE On LEDs for each port.
    • Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port.
    • ALOS LED indicates fiber connection for SFP port.
    • Heartbeat LED indicates proper operation of the unit.
  • VLAN:
    • Multiple management VLAN assignment.
    • 802.1Q Tagged VLAN.
    • Up to 10 VLAN groups. ID Range 2-4095.
  • LINQ Technology:
    • Remote network management allows for camera/device reset and diagnostic monitoring.
    • Provides local and/or remote access to critical information via LAN/WAN.
    • Email and Windows Dashboard Alert notifications report real-time events.
    • Event log tracks history.
  • Environmental
      • Temperature:
        • Operating (360W): - 30° C to 65° C ( - 22° F to 149° F).
        • Operating (240W): - 30° C to 70° C ( - 22° F to 158° F).
    • Storage: - 30° C to 85° C ( - 22° F to 185° F).
    • Relative Humidity: 85% +/- 5%
    • BTU/Hr. (approx.): 183 BTU/Hr.
  • Operating Altitude
    • - 304.8 to 2,000m.

CE Compliant
Enclosure:
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 17.32"W x 19.31"H x 9.58"D (439.9 mm W x 490.4 mm H x 243.3 mm D).
Weights (approximate):
  • Product Weight: 20.6 Lbs. (9.34 kg).
  • Shipping Weight: 24.3 Lbs. (11.1 kg).
Print
*Batteries sold separately
