T1RAL33F16

Altronix Access and Power Integration Kit - Trove1AL1R with 2-eFlow6NB, 2-ACMS8

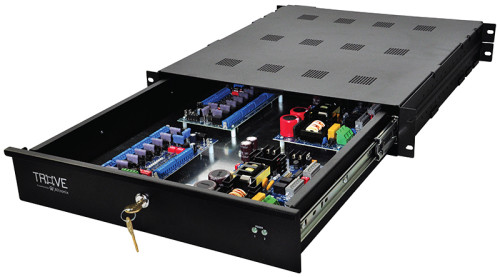

Altronix T1RAL33F16 rack kit is pre-assembled and consists of Trove1AL1R enclosure/backplane with factory installed Altronix power supply/ charger(s) and sub-assemblies.

  • Two (2) eFlow6NB Power Supply/Chargers
      • Input
        • Voltage: 120VAC, 60Hz, 7A max.
        • Fusing: 5A / 250V.
      • Output
        • Voltage: Factory set: one (1) eFlow6NB at 12VDC and one (1) at 24VDC.
        • Current: 6A continuous.
        • Maximum Supply Current for Main and Aux. Outputs on eFlow6NB Power Supply boards and ACMS8 Access Power Controller's outputs is 5.3A @ 12VDC and 5.6A @ 24VDC.
        • Auxiliary: Class 2 power-limited @ 1A (unswitched).
        • Other: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Type: Sealed lead acid or gel type
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately).
  • Fire Alarm Disconnect
    • Supervised: Latching or non latching.
    • EOL: 10K Resistor.
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
  • Indicators LED
    • Input: 120VAC is present.
    • DC Output: Powered.
    • Battery: Discharged or not connected.
  • Two (2) ACMS8 Access Power Controllers
      • Input
        • Voltage: 24VDC from one eFlow6NB and 12VDC from another.
        • Fusing: 15A / 32V.
      • Output
        • Voltage: 12 or 24VDC individually selectable.
        • Eight (8) selectable 12VDC or 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs.
        • b) Form “C” Relays. 28VAC or VDC @ 2.5A Rated.
        • c) Auxiliary power outputs (unswitched).
        • d) Any combination of the above.
        • Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
        • Output Fuses: 3A / 32VDC.
      • Indicators (LED's)
        • Voltage: 24VDC from one eFlow6NB and 12VDC from another.
        • Fusing: 15A / 32V.
      • Individual voltage LEDs
        • Green: 12VDC
        • Red/Green: 24VDC
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 156 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
ACMS8 2 Dual Input Access Power Controller, 8 Fuse Protected Outputs, Board
eFlow6NB 2 Power Supply Charger, Single Output, 12/24VDC @ 6A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
Trove1AL1R 1 Altronix Access and Power Integration Rack Mount Enclosure with Backplane, Trove1 Rack Series
Enclosure:
  • Trove Rack Mount Enclosure
  • Dimensions 19"W x 3.25"H x 26.5"D (482.6 mm W x 82.6 mm H x 673.1 mm D).
  • Rails extend to 36" (914.4mm). Ample knockouts for convenient use.
Weights (approximate):
  • Product Weight: 22 Lbs. (9.98 kg).
  • Shipping Weight: 27 Lbs. (12.25 kg).
