T2AGK75F12V

12-Door Altronix/Amag Access and Power Integration Kit - Trove2AM2 with eFlow104NBV, eFlow102NBV, ACM8, ACM4, PD4UL

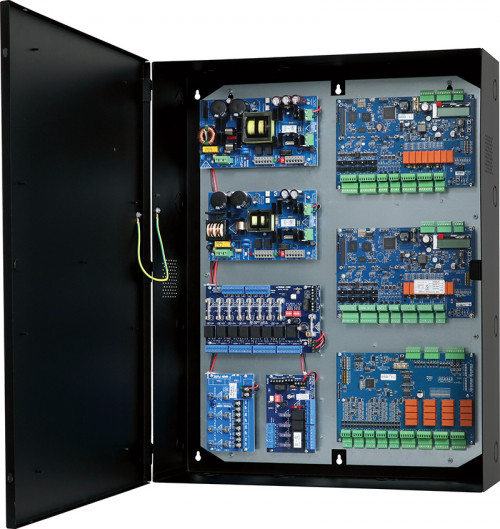

Altronix T2AGK75F12V kit consists of Trove2 enclosure, TAM2 AMAG/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) 12VDC @ 10A power supply/ charger, one (1) 8-output fused access power controller, one (1) 4-output fused access power controller, and one (1) fused power distribution module.
This kit also accommodate up to three (3) AMAG M4000 modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • eFlow104NBV Power Supply/Charger - 1
      • Input
        • Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.7A.
        • Main Fuse: 6.5A / 250V.
      • Output
        • Voltage: 24VDC.
        • Current: 10A continuous.
  • eFlow102NBV Power Supply/Charger - 2
      • Input
        • Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.1A.
        • Main Fuse: 5A / 250V.
      • Output
        • Voltage: 12VDC.
        • Current: 10A continuous.
  • Both Power Supplies
      • Outputs
        • Auxiliary: Class 2 power-limited @ 1A (unswitched).
        • Other: Overvoltage protection. Filtered and regulated.
      • Battery Charging
        • Type: Sealed lead acid or gel type.
        • Fuse Rating: 10A / 32VDC.
        • Failover: Upon AC loss, instantaneous.
        • (Batteries are sold separately).
      • Fire Alarm Disconnect
        • Supervised: Latching or non-latching.
        • EOL: 10K Resistor.
      • Supervision
        • AC Failure: Form “C” contacts.
        • Battery: Form “C” contacts.
        • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units or 71-73% for 12V units. Prevents deep battery discharge.
      • Indicators (LED)
        • AC Input: 220VAC is present.
        • DC Output: Powered.
  • ACM8 Access Power Controller
      • Input
        • Voltage: 24VDC from eFlow104NBV.
        • Main Fuse: 10A / 250V.
      • Outputs
        • Voltage: 24VDC.
        • Eight (8) independently controlled fused outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
        • b) Auxiliary power outputs (unswitched).
        • c) Any combination of the above.
        • Output Fuses: 3.5A / 250V.
      • Indicators (LED)
        • Red LEDs: Outputs are triggered (relays energized).
        • Green LED: FACP disconnect is triggered.
  • ACM4 Access Power Controller
      • Input
        • Voltage: 24VDC from eFlow104NBV.
        • Input Fuse: 10A /32V.
      • Outputs
        • Voltage: 24VDC.
        • Four (4) independently controlled fused outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
        • b) Auxiliary power outputs (unswitched).
        • c) Any combination of the above.
        • Output Fuses: 3A / 32V.
      • Indicators (LED)
        • Red LEDs: Outputs are triggered (relays energized).
        • Green LED: FACP disconnect is triggered.
  • PD4UL Power Distribution Module
      • Input
        • Voltage: 12VDC from eFlow102NBV.
      • Outputs
        • Voltage: 12VDC.
        • Four (4) fuse protected outputs. 3.5A per output max.
        • Output Fuses: 3.5A / 250V.
      • Indicators (LED)
        • Green LED: DC Output.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 177 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
TAM2 1 Trove2 Backplane for Altronix/AMAG
eFlow104NBV 1 Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 220VAC, Board
eFlow102NBV 1 Power Supply Charger, Single Output, 12VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 220VAC, Board
ACM8 1 Access Power Controller, 8 Fused Relay Outputs, FAI, Board
ACM4 1 Access Power Controller, 4 Fused Relay Outputs, FAI, Board
PD4UL 1 Power Distribution Module, 4 Fused Outputs up to 28VAC/VDC, Board
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 55.5 Lbs. (25.2 kg).
  • Shipping Weight: 60.5 Lbs. (27.4 kg).
Print

Access controllers not included

*Batteries sold separately
