T2DMK7516D

16-Door Altronix/DMP Access and Power Integration Kit - Trove2DM2 with AL1024ULXB2, AL1012ULXB, (2) ACM8CB, (2) PD8ULCB

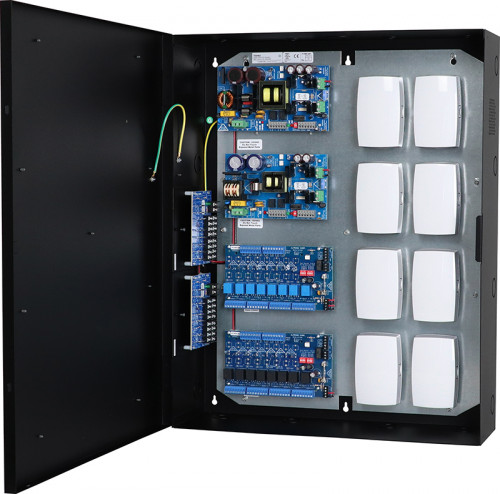

Altronix T2DMK7516D kit consists of Trove2 enclosure, TDM2 DMP/Altronix backplane with one (1) 24VDC @ 10A and one (1) 12VDC @ 10A power supply/chargers, one (1) PTC access power controller and one (1) PTC power distribution modules.
This kit also accommodates up to eight (8) DMP 734/734N Wiegand modules or one (1) X1 and seven (7) XD boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • AL1012ULXB Power Supply/Charger - 1
      • Input
        • Voltage: 115VAC, 60Hz, 2.6A
        • Fusing: 5A / 250V
      • Outputs
        • Voltage: 12VDC
        • Current: 10A @ 12VDC continuous max.
        • Other: Overvoltage protection. Filtered and regulated
  • AL1024ULXB2 Power Supply/Charger - 2
      • Input
        • Voltage: 115VAC, 60Hz, 4.2A
        • Fusing: 5A / 250V.
      • Output
        • Voltage: 24VDC.
        • Current: 10A @ 24VDC continuous max.
        • Other: Overvoltage protection. Filtered and regulated.
  • Both Power Supplies
      • Battery Charging
        • Capacity: 12VDC/12AH (4 within enclosure); 40AH/65AH (requires separate enclosure).
        • Type: Sealed lead acid or gel type.
        • Failover: Upon AC loss, instantaneous.
        • (Batteries are sold separately).
      • Supervision
        • AC Failure: Form “C” contacts.
        • Battery: Form “C” contacts.
      • Indicators LED
        • AC Input: 115VAC is present.
        • DC Output: Powered.
        • Battery: Discharged or not connected.
  • Two (2) PD8ULCB Power Distribution Modules
      • Input
        • Voltage: 12VDC from AL1012ULXB
      • Outputs
        • Voltage: 12VDC.
        • PTCs: 2.5A.
      • Indicators LED
        • Green LED: DC Output.
  • Two (2) ACM8CB Dual Input Access Power Controllers
      • Input
        • Voltage: 24VDC from AL1024ULXB2.
        • Main Fuse: 10A / 250V.
      • Outputs
        • Voltage: 24VDC.
        • Eight (8) 24VDC independently controlled PTC outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
        • b) Any combination of the above.
        • Output PTCs: 2.5A.
      • Indicators (LED)
        • Red LEDs: Outputs are triggered (relays energized).
        • Green LED: FACP disconnect is triggered.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 217 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.

TAA Compliant

NDAA Compliant

BAA Compliant
Name Qty Description Agency Listings
Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
TDM2 1 Trove2 Backplane for Altronix/DMP
AL1024ULXB2 1 Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
AL1012ULXB 1 Power Supply Charger, Single Fused Output, 12VDC @ 10A, 115VAC, Board
ACM8CB 2 Access Power Controller, 8 PTC Class 2 Relay Outputs, FAI, Board
PD8ULCB 2 Power Distribution Module, 8 PTC Outputs up to 28VAC/VDC, Board
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 49 Lbs. (22.23 kg).
  • Shipping Weight: 53.35 Lbs. (24.2 kg).
