T2MKTT8S

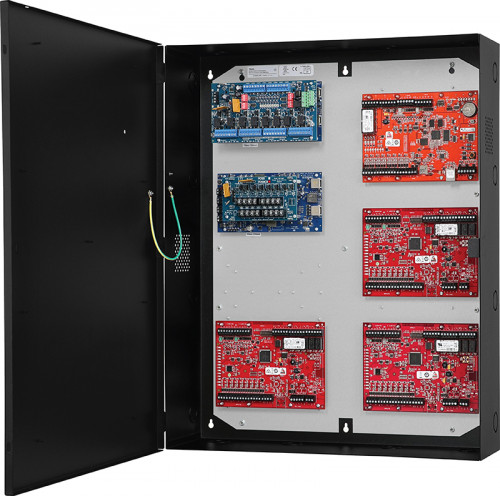

8-Door Altronix/Mercury Access and Power Integration Kit - Trove2M2 with (2) Tango1B, ACMS8, PDS8

Altronix T2MKTT8S is a 8-door access and power integration kit which includes two (2) Altronix PoE-driven power supply/chargers, eight (8) fuse protected output dual voltage access control module and eight (8) fuse protected output dual voltage power distribution module. This kit also accommodates various combinations of Mercury* boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

*Also compatible with these authentic Mercury partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt

  • Two (2) Tango1B PoE Driven Power Supply/Chargers
      • Ethernet Input
        • 802.3bt PoE up to 90W (or 802.3at up to 30W or 802.3af up to 15W)
      • Power Output (when using 802.3bt 90W)
        • 12VDC up to 5.4A (65W) and/or 24VDC up to 2.7A (65W)
        • Combined output not to exceed 65W
        • When charging batteries:
        • 12VDC up to 4.6A (55W) and/or 24VDC up to 2.3A (55W)
        • Combined output not to exceed 55W
      • Ethernet Output
        • Pass-through Ethernet Port (data only)
      • Battery Charging Circuit
        • Automatically adjusts between Lead Acid and Lithium Iron Phosphate Battery (LiFePO4 only)
        • Unique technology allows for single battery to backup 12VDC and/or 24VDC systems
      • Supervision
        • Loss of PoE Input
        • Battery Supervision
      • Indicators (LED)
        • Input: Indicates input voltage is present
        • Output: Indicates normal operating condition
        • PoE Type: PoE Class Indicator
        • Supervision: PoE Fail or BAT Fail
  • PDS8 Dual Input Power Distribution Module
      • Input
        • Voltage: 12VDC and 24VDC from Tango1B
        • Input Fuse: 10A / 32V.
      • Outputs
        • Voltage: 12VDC and/or 24VDC.
        • Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
      • Outputs Ratings
        • Fuses: 3A/32V.
      • Indicators (LED)
        • DC Output: Eight (8) individual output LEDs.
        • Green: 12VDC
        • Red: 24VDC.
  • ACMS8 Dual Input Access Power Controller
      • Input
        • Voltage: 12VDC and 24VDC from Tango1B
        • Input Fuse: 15A / 32V.
      • Outputs
        • Voltage: 12VDC or 24VDC
        • Eight (8) independently controlled fused outputs:
        • Form “C” Relays rated 28VAC or VDC @ 2.5A Rated.
        • b) Auxiliary power outputs (unswitched).
        • c) Any combination of the above.
        • Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2
        • Individual outputs may be set to OFF position for servicing
      • Outputs Ratings
        • Fuses: 3A/32V.
      • Indicators (LED's)
        • Red LEDs: Outputs are triggered (relays energized).
        • Blue LED: FACP disconnect is triggered.
        • Indicators (LED):
        • Green: 12VDC
        • Red: 24VDC
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 120 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
TM2 1 Trove2 Backplane for Altronix & Mercury
Tango1B 2 PoE Driven Power Supply with Lithium Battery Backup, Board
ACMS8 1 Dual Input Access Power Controller, 8 Fuse Protected Outputs, Board
PDS8 1 Dual Input Power Distribution Module, 8 Fused Outputs
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to one (1) 13VDC/4.5AH Batteries.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 41.6 Lbs. (18.87 kg).
  • Shipping Weight: 45.6 Lbs. (20.68 kg).
Configure Trove Print

Access controllers not included

*Batteries sold separately
