T2MTT8K1

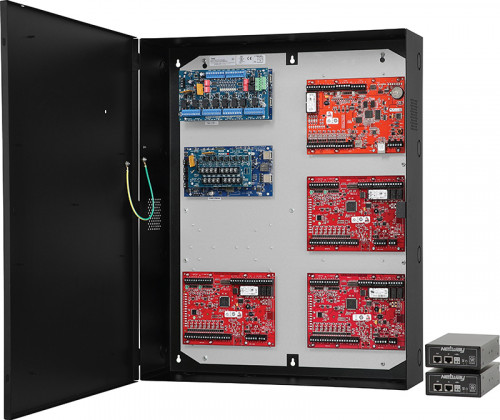

8-Door Altronix/Mercury Access and Power Integration Kit - Trove2M2 with (2) Tango1B, ACMS8, PDS8, (2) NetWay1BT

Altronix T2MTT8K1 is a 8-door access and power integration kit which includes two (2) Altronix PoE-driven power supply/chargers, eight (8) fuse protected output dual voltage access control module and eight (8) fuse protected output dual voltage power distribution module. Also included are two (2) NetWay1BT midspan injectors (boxed separately). This kit also accommodates various combinations of Mercury* boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

*Also compatible with these authentic Mercury partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt

  • Two (2) Tango1B PoE Driven Power Supply/Chargers
      • Ethernet Input
        • 802.3bt PoE up to 90W (or 802.3at up to 30W or 802.3af up to 15W)
      • Power Output (when using 802.3bt 90W)
        • 12VDC up to 5.4A (65W) and/or 24VDC up to 2.7A (65W)
        • Combined output not to exceed 65W
        • When charging batteries:
        • 12VDC up to 4.6A (55W) and/or 24VDC up to 2.3A (55W)
        • Combined output not to exceed 55W
      • Ethernet Output
        • Pass-through Ethernet Port (data only)
      • Battery Charging Circuit
        • Automatically adjusts between Lead Acid and Lithium Iron Phosphate Battery (LiFePO4 only)
        • Unique technology allows for single battery to backup 12VDC and/or 24VDC systems
      • Supervision
        • Loss of PoE Input
        • Battery Supervision
      • Indicators (LED)
        • Input: Indicates input voltage is present
        • Output: Indicates normal operating condition
        • PoE Type: PoE Class Indicator
        • Supervision: PoE Fail or BAT Fail
  • Two (2) NetWay1BT Single Port 802.3bt Midspan Injectors
      • Input
        • Voltage 115VAC, 60Hz, 1.2A or 230VAC, 50/60Hz, 0.75A
      • Power Output
        • IEEE802.3bt compliant
        • Unit provides PoE / PoE+ / Hi-PoE
        • 90W full power
      • Ethernet
        • Connectivity: RJ45, auto-crossover.
        • Wire type: 4-pair CAT5 or better structured cable.
        • Distance: up to 100m.
        • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
      • Indicators (LED)
        • Red LED: PoE ON
        • Red LED: Power ON
        • Yellow and Green LED (by RJ45 jack): IP Link status, 10/100Base-T/active
  • PDS8 Dual Input Power Distribution Module
      • Input
        • Voltage: 12VDC and 24VDC from Tango1B
        • Input Fuse: 10A / 32V.
      • Outputs
        • Voltage: 12VDC and/or 24VDC.
        • Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
      • Outputs Ratings
        • Fuses: 3A/32V.
      • Indicators (LED)
        • DC Output: Eight (8) individual output LEDs.
        • Green: 12VDC
        • Red: 24VDC.
  • ACMS8 Dual Input Access Power Controller
      • Input
        • Voltage: 12VDC and 24VDC from Tango1B
        • Input Fuse: 15A / 32V.
      • Outputs
        • Voltage: 12VDC or 24VDC individually selectable
        • Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs:
        • Form “C” Relays. 28VAC or VDC @ 2.5A Rated.
        • b) Auxiliary power outputs (unswitched).
        • c) Any combination of the above.
        • Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2
        • Individual outputs may be set to OFF position for servicing
      • Outputs Ratings
        • Fuses: 3A/32V.
      • Indicators (LED's)
        • Red LEDs: Outputs are triggered (relays energized).
        • Blue LED: FACP disconnect is triggered.
        • Indicators (LED)
        • Green: 12VDC
        • Red: 24VDC
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 120 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
TM2 1 Trove2 Backplane for Altronix & Mercury
Tango1B 2 PoE Driven Power Supply with Lithium Battery Backup, Board
ACMS8 1 Dual Input Access Power Controller, 8 Fuse Protected Outputs, Board
PDS8 1 Dual Input Power Distribution Module, 8 Fused Outputs
NetWay1BT 2 Midspan Injector, Single Port 802.3bt, 10/100/1000, PoE/PoE+, Aux. Class 2 power-limited output rated @ 56VDC/90W, 115/230VAC
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to one (1) 13VDC/4.5AH Batteries.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 41.6 Lbs. (18.87 kg).
  • Shipping Weight: 45.6 Lbs. (20.68 kg).
Configure Trove Print

Access controllers not included

*Batteries sold separately
