T2SLK78

8-Door Altronix/Sielox Access and Power Integration Kit - Trove2SL2 with AL1024ULXB2, ACM8, VR6, PDS8

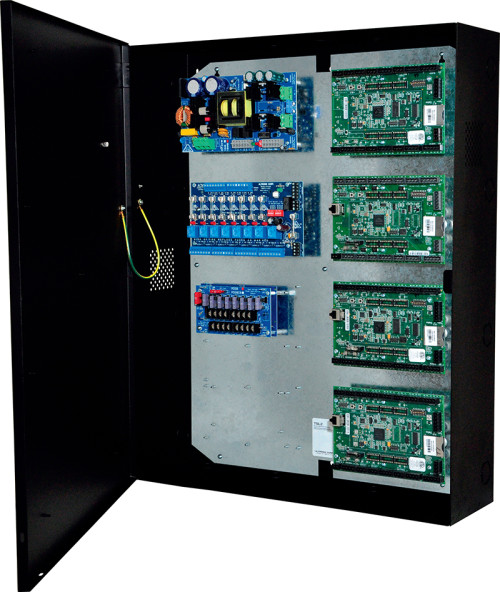

Altronix T2SLK78 kit consists of Trove2 enclosure, TSL2 Sielox/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) fused access power controller, one (1) voltage regulator and one (1) dual input fused power distribution module.
This kit also accommodates up to four (4) Sielox AC-1700 boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • AL1024ULXB2 Power Supply/Charger
      • Input
        • Voltage: 115VAC, 60Hz, 4.2A max.
        • Main Fuse: 5A / 250V.
      • Outputs
        • Voltage: 24VDC.
        • Current: 10A @ 24VDC continuous max.
        • Other: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Capacity: 12AH /12VDC (2 within enclosure), 40 AH / 65 AH (requires separate enclosure).
    • Type: Sealed lead acid or gel type.
    • Failover: Upon AC loss, instantaneous.
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
  • Indicators LED
    • Input: 115VAC is present.
    • DC Output: Powered.
    • Battery: Discharged or not connected.
  • PDS8 Dual Input Power Distribution Module
      • Input
        • Voltage: 12VDC from VR6 and 24VDC from AL1024ULXB2.
        • Input Fuse: 10A / 32V.
      • Outputs
        • Voltage: 12VDC and/or 24VDC.
        • Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
      • Outputs Ratings
        • Fuses: 3A/32V.
      • Indicators (LED)
        • DC Output: Eight (8) individual output LEDs.
        • Green: 12VDC
        • Red: 24VDC.
  • VR6 Voltage Regulator
      • Input
        • Voltage: 24VDC from AL1024ULXB2.
      • Output
        • Voltage: 12VDC.
        • Current: 6A continuous.
        • Other: Surge suppression.
      • Indicators LED
        • Input: 24VDC is present.
        • Output: Powered.
  • ACM8 Access Power Controller
      • Input
        • Voltage: 24VDC from AL1024ULXB2.
        • Main Fuse: 10A / 250V.
      • Outputs
        • Voltage: 24VDC.
        • Eight (8) independently controlled fused outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
        • b) Auxiliary power outputs (unswitched).
        • c) Any combination of the above.
        • Output Fuses: 3.5A / 250V.
      • Indicators (LED)
        • Red LEDs: Outputs are triggered (relays energized).
        • Green LED: FACP disconnect is triggered.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity 85% +/- 5%.
      • BTU/Hr (approx.):
        • 128 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
TSL2 1 Trove2 Backplane for Altronix/Sielox
AL1024ULXB2 1 Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
ACM8 1 Access Power Controller, 8 Fused Relay Outputs, FAI, Board
VR6 1 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
PDS8 1 Dual Input Power Distribution Module, 8 Fused Outputs
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/12AH Batteries.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 54.3 Lbs. (24.6 kg).
  • Shipping Weight: 59.3 Lbs. (26.9 kg).
Configure Trove Print

Access controllers not included

*Batteries sold separately
