T3AMK7716S

16-Door Altronix/Amag Access and Power Integration Kit - Trove3AM3 with (2) AL1024ULXB2, (2) ACMS8, (2) VR6, (2) PDS8

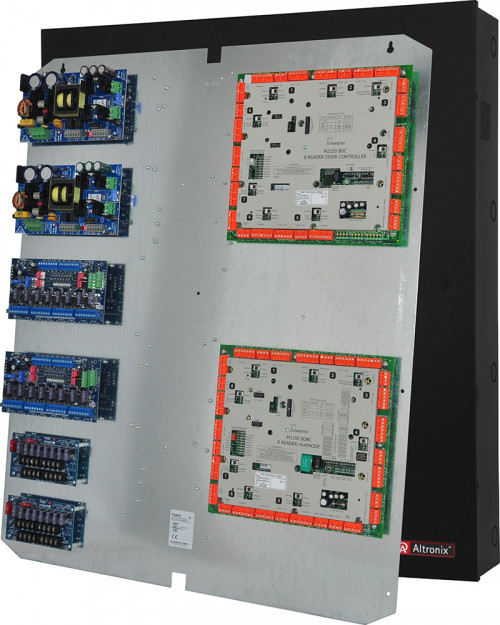

Altronix T3AMK7716S kit consists of Trove3 enclosure, TAM3 AMAG/Altronix backplane with two (2) 24VDC @ 10A power supply/chargers, two (2) dual input/output fused access power controllers, two (2) voltage regulators and two (2) dual input/output fused power distribution modules. This kit also accommodates various M2150 modules or four (4) AMAG M4000 modules for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • Two (2) AL1024ULXB2 Power Supply/Chargers
      • Input
        • Voltage: 115VAC, 60Hz, 4.2A max.
        • Main Fuse: 5A / 250V.
      • Output
        • Voltage: 24VDC.
        • Current: 10A @ 24VDC continuous max.
        • Other: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Capacity: 12AH /12VDC (4 within enclosure), 40 AH / 65 AH (requires separate enclosure).
    • Type: Sealed lead acid or gel type.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
  • Indicators LED
    • Input: 115VAC is present.
    • DC Output: Powered.
    • Battery: Discharged or not connected.
  • Two (2) ACMS8 Dual Input Access Power Controllers
      • Input
        • Voltage: 24VDC from AL1024ULXB2 and 12VDC from VR6
        • Input Fuse: 15A / 32V.
      • Outputs
        • Voltage: 12VDC or 24VDC individually selectable
        • Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs; Form “C” Relays rated 28VAC or VDC @ 2.5A.
        • b) Auxiliary power outputs (unswitched).
        • c) Any combination of the above.
        • Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2
        • Individual outputs may be set to OFF position for servicing
      • Outputs Ratings
        • Fuses: 3A/32V.
      • Indicators (LED's)
        • Red LEDs: Outputs are triggered (relays energized).
        • Blue LED: FACP disconnect is triggered.
        • Individual voltage LEDs:
        • Green: 12VDC
        • Red: 24VDC
  • Two (2) PDS8 Dual Input Power Distribution Modules
      • Input
        • Voltage: 24VDC from AL1024ULXB2 and 12VDC from VR6
        • Input Fuse: 10A / 32V.
      • Outputs
        • Voltage: 12VDC and/or 24VDC.
        • Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
      • Outputs Ratings
        • Fuses: 3A/32V.
      • Indicators (LED's)
        • DC Output: Eight (8) individual output LEDs.
        • Green: 12VDC.
        • Red: 24VDC.
  • Two (2) VR6 Voltage Regulators
      • Input
        • Voltage: 24VDC from AL1024ULXB2
      • Output
        • Voltage: 12VDC.
        • Current: 6A continuous.
        • Other: Surge suppression.
      • Indicators LED
        • Input: 24VDC is present.
        • Output: Powered.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 20 to 85%, non-condensing
      • BTU/Hr. (approx.):
        • 246 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.

TAA Compliant

NDAA Compliant

BAA Compliant
Name Qty Description Agency Listings
Trove3 1 Access and Power Integration Enclosure, Requires compatible Trove3 Series Backplane
TAM3 1 Trove3 Backplane for Altronix/AMAG
AL1024ULXB2 2 Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
ACMS8 2 Dual Input Access Power Controller, 8 Fuse Protected Outputs, Board
VR6 2 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
PDS8 2 Dual Input Power Distribution Module, 8 Fused Outputs
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 84.2 Lbs. (38.2 kg).
  • Shipping Weight: 97.5 Lbs. (44.22 kg).
Configure Trove Print

Access controllers not included

*Batteries sold separately
