NetWaySP41X

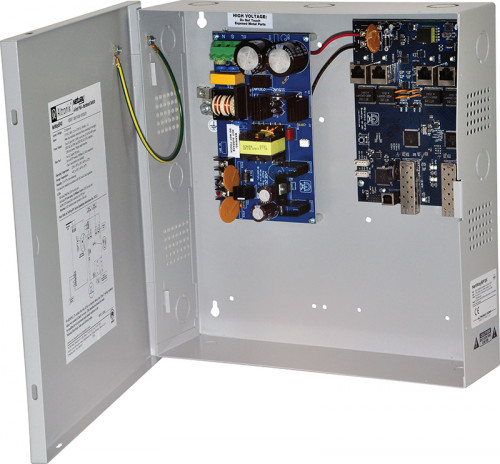

Dual Fiber Optic SFP 1G Link, 4-port PoE+ switch and power supply. NEMA1 rated Indoor enclosure BC300

Altronix NetWaySP41X PoE+ Hardened Switch provides two (2) 1Gb SFP (Fiber) ports and four (4) PoE+ (30W) ports, passing data for PoE/PoE+ compliant devices. Cameras/edge devices may be located up to 100m from the unit.

  • Input
    • Voltage: 115VAC, 60Hz, 2.5A or 230VAC, 50/60Hz, 1.3A
    • Fusing: 5A/250V
  • Power Output
      • Maximum Power
        • Four (4) PoE+ (30W) ports
        • IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant
        • 120W total power
        • Integral surge protection
  • Fiber Ports
    • Two (2) Gigabit SFP port.
  • Ethernet Ports
    • Four (4) 10/100/1000 Mbps ports.
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5e or better structured cable.
    • Distance: up to 100m.
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
  • Battery Charging
    • Type: Sealed lead acid or gel type.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
    • (Separate ventilated enclosure is required).
  • Indicators (LED)
    • Individual PoE On LEDs for each port.
    • Individual IP Link status, 10/100Base-T/active LEDs for each port.
    • ALOS LED indicates fiber connection for SFP port.
    • Heartbeat LED indicates proper operation of the unit.
  • Environmental
      • Temperature:
        • Operating (60W): - 40° C to 75° C ( - 40° F to 167° F).
        • Operating (75W): - 40° C to 70° C ( - 40° F to 158° F).
        • Operating (100W): - 40° C to 55° C ( - 40° F to 131° F).
        • Operating (120W): - 40° C to 45° C ( - 40° F to 113° F).
    • Storage: - 40° C to 85° C ( - 40° F to 185° F).
    • Relative Humidity: 85% +/- 5%
    • BTU/Hr. (approx.): 61 BTU/Hr.
  • Operating Altitude
    • - 304.8 to 2,000m.

CE Compliant
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 6.65 Lbs. (3.02 kg).
  • Shipping Weight: 7.55 Lbs. (3.42 kg).
