NetWaySP41WPN

Dual Fiber Optic SFP 1G Link and 4-port PoE+ switch (uses external power supply). NEMA4/4X, IP66 rated Outdoor enclosure.

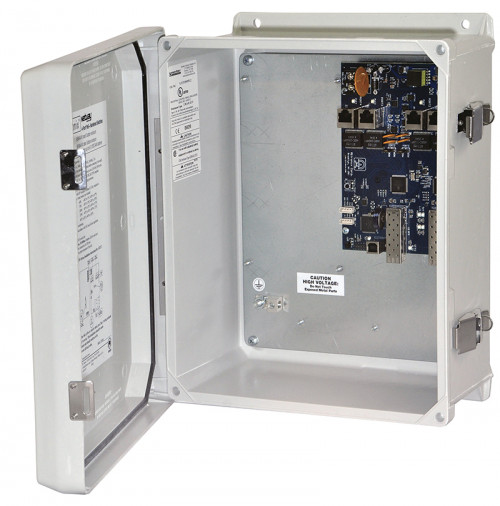

Altronix NetWaySP41WPN Outdoor PoE+ Hardened Switch provides two (2) 1Gb SFP (Fiber) ports and four (4) PoE+ (30W) ports, passing data for PoE/PoE+ compliant devices. Cameras/edge devices may be located up to 100m from the unit.

  • Input
    • Voltage: 48-56V UL Listed ITE power supply (up to 120W).
  • Power Output
      • Maximum Power
        • Four (4) PoE+ (30W) ports
        • IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant
        • 120W total power
        • Integral surge protection
  • Fiber Ports
    • Two (2) Gigabit SFP port.
  • Ethernet Ports
    • Four (4) 10/100/1000 Mbps ports.
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5e or better structured cable.
    • Distance: up to 100m.
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
  • Indicators (LED)
    • Individual PoE On LEDs for each port.
    • Individual IP Link status, 10/100Base-T/active LEDs for each port.
    • ALOS LED indicates fiber connection for SFP port.
    • Heartbeat LED indicates proper operation of the unit.
  • Environmental
      • Temperature:
        • Operating (120W): - 40° C to 75° C ( - 40° F to 167° F).
        • Storage: - 40° C to 85° C ( - 40° F to 185° F).
    • Relative Humidity: 85% +/- 5%
  • Operating Altitude
    • - 304.8 to 2,000m.

CE Compliant
Enclosure:
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
  • Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Weights (approximate):
  • Product Weight: 9.5 Lbs. (4.3 kg).
  • Shipping Weight: 10.9 Lbs. (4.9 kg).
