T2AA7516CK2

16-Door Altronix/Azure Access and Power Integration Wired Kit - Trove2AA2 and TMV2 with eFlow104NB, eFlow102NB, ACMS8, PDS8, RSB2, wire harnesses and finger duct

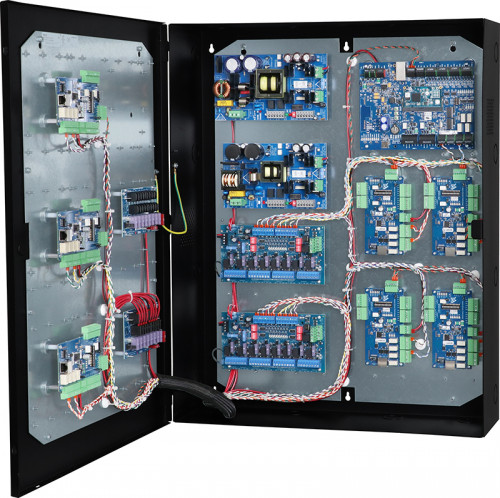

Altronix T2AA7516CK2 is a 16-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Azure hardware. This unit provides ample power and dual voltage outputs to support Azure platform controllers and locking devices. The T2AA7516CK2 accommodates one (1) 2-Door Network Controller and seven (7) Downstream Reader Interfaces. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.

  • eFlow104NB Power Supply/Charger - 1
      • Input
        • Voltage: 120VAC, 60Hz, 4.5A.
        • Main Fuse: 6.5A / 250V.
      • Output
        • Voltage: 24VDC @ 10A.
        • Auxiliary: 1A (unswitched).
        • Protection: Overvoltage protection. Filtered and regulated.
  • eFlow102NB Power Supply/Charger - 2
      • Input
        • Voltage: 120VAC, 60Hz, 3.5A.
        • Input Fuse: 5A / 250V.
      • Output
        • Voltage: 12VDC @ 10A.
        • Auxiliary: 1A (unswitched).
        • Protection: Overvoltage protection. Filtered and regulated.
  • Both Power Supplies
      • Battery Charging
        • Capacity: 12VDC/12AH (4 within enclosure); 40AH/65AH (requires separate enclosure).
        • Type: Sealed lead acid or gel type.
        • Failover: Upon AC loss, instantaneous.
        • (Batteries are sold separately).
      • Fire Alarm Disconnect
        • Supervised: Latching or non-latching.
        • EOL: 10K Resistor.
      • Supervision
        • AC Failure: Form “C” contacts.
        • Battery: Form “C” contacts.
        • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
      • Indicators LED
        • AC Input: 120VAC is present.
        • DC Output: Powered.
        • Battery: Discharged or not connected.
  • Two (2) PDS8 Dual Input Power Distribution Modules
      • Input
        • Voltage: 24VDC from eFlow104NB and 12VDC from eFlow102NB
        • Input Fuse: 10A / 32V
      • Outputs
        • Voltage: 12VDC and/or 24VDC
        • Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2
        • Individual outputs may be set to OFF position for servicing
      • Outputs Ratings
        • Fuses: 3A/32V
      • Indicators (LED)
        • DC Output: Eight (8) individual output LEDs
        • Green: 12VDC
        • Red: 24VDC.
  • Two (2) ACMS8 Dual Input Access Power Controllers
      • Input
        • Voltage: 24VDC from eFlow104NB and 12VDC from eFlow102NB
        • Input Fuse: 15A / 32V.
      • Outputs
        • Voltage: 12VDC or 24VDC individually selectable.
        • Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs Form “C” Relays rated 28VAC or VDC @ 2.5A.
        • b) Auxiliary power outputs (unswitched).
        • c) Any combination of the above.
      • Outputs Ratings
        • Fuses: 3A/32V.
      • Indicators (LED's)
        • Red LEDs: Outputs are triggered (relays energized).
        • Blue LED: FACP disconnect is triggered.
        • Individual voltage LEDs:
        • Green: 12VDC
        • Red: 24VDC
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 217 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
eFlow104NB 1 Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
eFlow102NB 1 Power Supply Charger, Single Output, 12VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
ACMS8 2 Dual Input Access Power Controller, 8 Fuse Protected Outputs, Board
PDS8 2 Dual Input Power Distribution Module, 8 Fused Outputs
RSB2 1 Dual Power ON/OFF Rocker Switches with Mounting Bracket
TMV2 1 Altronix/Mercury/HID VertX®/Aero® door backplane for Trove2 and Trove3
TAA2 1 Trove2 Backplane (only) for Altronix/Azure
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 49 Lbs. (22.23 kg).
  • Shipping Weight: 53.35 Lbs. (24.2 kg).
Configure Trove Print

Access controllers not included

*Batteries sold separately
