T2AGK7512

12-Door Altronix/AMAG M4000 Access and Power Integration Kit - Trove2AM2 with AL1024ULXB2, AL1012ULXB, ACM8, ACM4, PD4UL

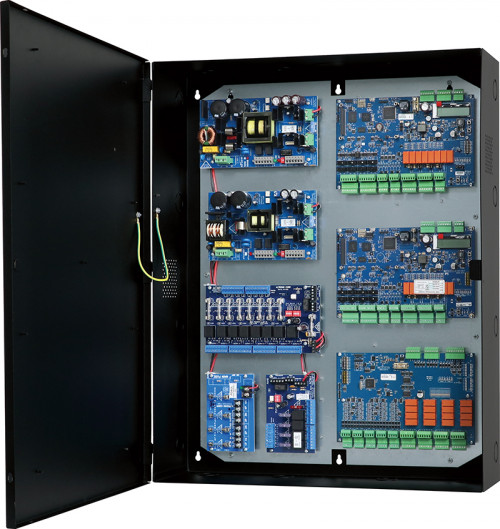

Altronix T2AGK7512 kit consists of Trove2 enclosure, TAM2 AMAG/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) 12VDC @ 10A power supply/charger, one (1) 8-output fused access power controller, one (1) 4-output fused access power controller, and one (1) fused power distribution module.
This kit also accommodate up to three (3) AMAG M4000 modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • AL1024ULXB2 Power Supply/Charger - 1
      • Input
        • Voltage: 115VAC, 60Hz, 4.2A.
        • Input Fuse: 5A / 250V.
      • Output
        • Voltage: 24VDC.
        • Current: 10A @ 24VDC continuous max.
        • Other: Overvoltage protection. Filtered and regulated.
  • AL1012ULXB Power Supply/Charger - 2
      • Input
        • Voltage: 115VAC, 60Hz, 2.6A.
        • Input Fuse: 5A / 250V.
      • Output
        • Voltage: 12VDC.
        • Current: 10A @ 12VDC continuous max.
        • Other: Overvoltage protection. Filtered and regulated.
  • Both Power Supplies
      • Battery Charging:
      • Capacity: 12AH/12VDC (4 within enclosure), 40AH/65AH (requires separate enclosure).
      • Type: Sealed lead acid or gel type.
      • Failover: Upon AC loss, instantaneous.
      • (Batteries are sold separately).
    • Supervision
      • AC Failure: Form “C” contacts.
      • Battery: Form “C” contacts.
    • Indicators LED
      • Input: 115VAC is present.
      • DC Output: Powered.
      • Battery: Discharged or not connected.
    • ACM8 Access Power Controller
        • Input
          • Voltage: 24VDC from AL1024ULXB2.
          • Input Fuse: 10A / 250V.
        • Outputs
          • Voltage: 24VDC.
          • Eight (8) independently controlled fused outputs:
          • a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
          • b) Auxiliary power outputs (unswitched).
          • c) Any combination of the above.
          • Output Fuses: 3.5A / 250V.
        • Indicators (LED)
          • Red LEDs: Outputs are triggered (relays energized).
          • Green LED: FACP disconnect is triggered.
    • ACM4 Access Power Controller
        • Input
          • Voltage: 24VDC from AL1024ULXB2.
          • Input Fuse: 10A /32V.
        • Outputs
          • Voltage: 24VDC.
          • Four (4) independently controlled fused outputs:
          • a) Fail-Safe and/or Fail-Secure power outputs, Form “C” Relays rated 28VAC or VDC @ 2.5A.
          • b) Auxiliary power outputs (unswitched).
          • c) Any combination of the above.
          • Output Fuses: 3A / 32V.
        • Indicators (LED)
          • Red LEDs: Outputs are triggered (relays energized).
          • Green LED: FACP disconnect is triggered.
    • PD4UL Power Distribution Module
        • Input
          • Voltage: 24VDC from AL1012ULXB.
        • Outputs
          • Voltage: 12VDC.
          • Four (4) fuse protected outputs. 3.5A per output max.
          • Output Fuses: 3.5A / 250V.
        • Indicators (LED)
          • Green LED: DC Output.
    • Environmental
        • Temperature
          • Operating: 0° C to 49° C (32° F to 120° F).
          • Storage: - 20° C to 70° C ( - 4° F to 158° F).
        • Relative Humidity
          • Relative Humidity: 85% +/- 5%.
        • BTU/Hr. (approx.):
          • 177 BTU/Hr.

    CE Compliant

    Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
    Name Qty Description Agency Listings
    Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
    TAM2 1 Trove2 Backplane for Altronix/AMAG
    AL1024ULXB2 1 Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
    AL1012ULXB 1 Power Supply Charger, Single Fused Output, 12VDC @ 10A, 115VAC, Board
    ACM8 1 Access Power Controller, 8 Fused Relay Outputs, FAI, Board
    ACM4 1 Access Power Controller, 4 Fused Relay Outputs, FAI, Board
    PD4UL 1 Power Distribution Module, 4 Fused Outputs up to 28VAC/VDC, Board
    Enclosure:
    • Wall mount enclosure for indoor use.
    • Accommodates up to four (4) 12VDC/12AH Batteries.
    • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
    • 3/4" and 1" combination knockouts.
    Weights (approximate):
    • Product Weight: 55.5 Lbs. (25.2 kg).
    • Shipping Weight: 60.6 Lbs. (27.4 kg).
    Configure Trove Print

    Access controllers not included

    *Batteries sold separately
