T2AGK78SV

8-Door Altronix/Amag Access and Power Integration Kit - Trove2AM2 with AL1024XB2V, ACMS8, VR6, PDS8

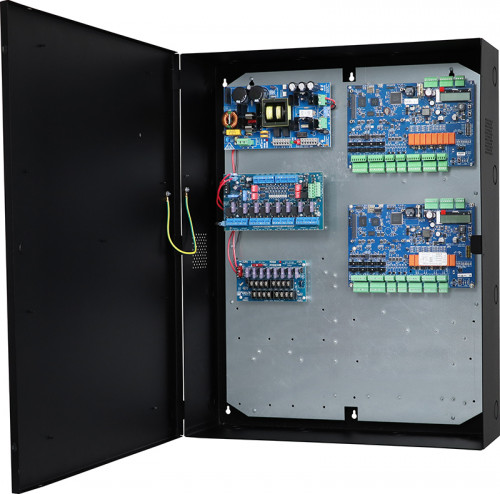

Altronix T2AGK78SV kit consists of Trove2 enclosure, TAM2 AMAG/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) 8-dual-output fused access power controller, one (1) voltage regulator and one (1) dual input fused power distribution module. This kit also accommodates up to three (3) AMAG M4000 modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • AL1024XB2V Power Supply/Charger
      • Input
        • Voltage: 220VAC (working range 198VAC-256VAC), 50/60Hz, 2.5A.
        • Fusing: 5A / 250V.
      • Outputs
        • Voltage: 24VDC.
        • Current: 10A @ 24VDC continuous max.
        • Other: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Capacity: 12AH/12VDC (4 within enclosure) 40AH/65AH (requires separate enclosure).
    • Type: Sealed lead acid or gel type.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
  • Indicators LED
    • Input: 220VAC is present.
    • DC Output: Powered.
    • Battery: Discharged or not connected.
  • ACMS8 Dual Input Access Power Controller
      • Input
        • Voltage: 24VDC from AL1024XB2V and 12VDC from VR6.
        • Input Fuse: 15A / 32V.
      • Outputs
        • Voltage: 12 or 24VDC individually selectable.
        • Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs:
        • b) Form “C” Relays rated 28VAC or VDC @ 2.5A Rated.
        • c) Auxiliary power outputs (unswitched).
        • d) Any combination of the above.
        • Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
      • Outputs Ratings
        • Fuses: 3A/32V.
      • Indicators (LED's)
        • Red LEDs: Outputs are triggered (relays energized).
        • Blue LED: FACP disconnect is triggered.
        • Individual voltage LEDs:
        • Green: 12VDC.
        • Red: 24VDC.
  • PDS8 Dual Input Power Distribution Module
      • Input
        • Voltage: 24VDC from AL1024XB2V and 12VDC from VR6.
        • Input Fuse: 10A / 32V.
      • Outputs
        • Voltage: 12VDC and/or 24VDC.
        • Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
      • Outputs Ratings
        • Fuses: 3A/32V.
      • Indicators LED
        • DC Output: Eight (8) individual output LEDs.
        • Green: 12VDC
        • Red: 24VDC.
  • VR6 Voltage Regulator
      • Input
        • Voltage: 24VDC from AL1024XB2V.
      • Output
        • Voltage: 12VDC.
        • Current: 6A continuous.
        • Other: Surge suppression.
      • Indicators LED
        • Input: 24VDC is present.
        • Output: Powered.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 123 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
TAM2 1 Trove2 Backplane for Altronix/AMAG
AL1024XB2V 1 Power Supply Charger, Single Fused Output, 24VDC @ 10A, 220VAC, Board
ACMS8 1 Dual Input Access Power Controller, 8 Fuse Protected Outputs, Board
VR6 1 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
PDS8 1 Dual Input Power Distribution Module, 8 Fused Outputs
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 54.6 Lbs. (24.8 kg).
  • Shipping Weight: 59.6 Lbs. (27 kg).
Configure Trove Print

Access controllers not included

*Batteries sold separately
