T2HCK7516

Up to 16-Door Altronix/Hartmann Controls Access and Power Integration Kit - Trove2HC2 with AL1024ULXB2, AL1012ULXB, (2) ACMS8

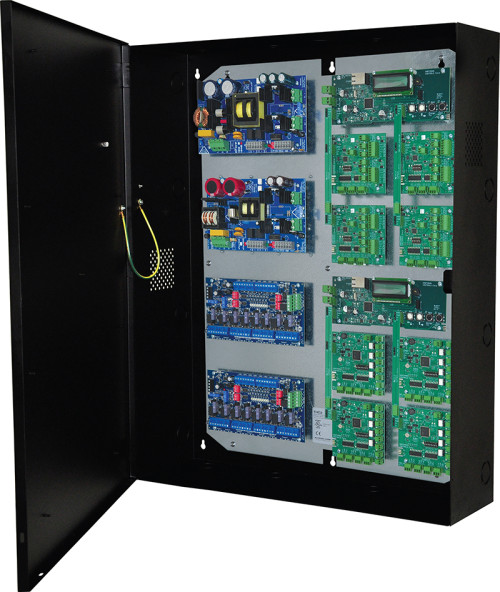

Altronix T2HCK7516 kit consists of Trove2 enclosure and THC2 Hartmann Controls/Altronix backplane with 12VDC @ 10A and 24VDC @ 10A power supply/chargers and two (2) ACMS8 Access Power Controllers. This kit also accommodates up to two (2) PRS_MASTER and eight (8) PRS_TDM, PRS_IO8 modules for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • AL1024ULXB2 Power Supply/Charger - 1
      • Input
        • Voltage: 115VAC, 60Hz, 4.2A max.
        • Main Fuse: 5A / 250V.
      • Output
        • Voltage: 24VDC.
        • Current: 10A @ 24VDC continuous max.
        • Other: Overvoltage protection. Filtered and regulated.
  • AL1012ULXB Power Supply/Charger - 2
      • Input
        • Voltage: 115VAC, 60Hz, 2.6A max.
        • Fusing: 5A / 250V.
      • Outputs
        • Voltage: 12VDC.
        • Current: 10A @ 12VDC continuous max.
        • Other: Overvoltage protection. Filtered and regulated.
  • Both Power Supplies:
      • Battery Charging
      • Capacity: 12AH/12VDC (2 within enclosure) 40AH/65AH (requires separate enclosure).
      • Type: Sealed lead acid or gel type.
      • Failover: Upon AC loss, instantaneous.
    • Supervision
      • AC Failure: Form “C” contacts.
      • Battery: Form “C” contacts.
    • Indicators LED
      • Input: 115VAC is present.
      • DC Output: Powered.
      • Battery: Discharged or not connected.
    • Two (2) ACMS8 Dual Input Access Power Controllers
        • Input
          • Voltage: 24VDC from AL1024ULXB2 and 12VDC from AL1012ULXB.
          • Input Fuse: 15A / 32V.
        • Outputs
          • Voltage: 12VDC and/or 24VDC.
          • Eight (8) independently controlled fused outputs:
          • a) Fail-Safe and/or Fail-Secure power outputs Form “C” Relays rated 28VAC or VDC @ 2.5A.
          • b) Auxiliary power outputs (unswitched).
          • c) Any combination of the above.
        • Outputs Ratings
          • Fuses: 3A/32V.
        • Indicators (LED's)
          • Red LEDs: Outputs are triggered (relays energized).
          • Green LED: FACP disconnect is triggered.
    • Environmental
        • Temperature
          • Operating: 0° C to 49° C (32° F to 120° F).
          • Storage: - 20° C to 70° C ( - 4° F to 158° F).
        • Relative Humidity
          • Relative Humidity 85% +/- 5%.
        • BTU/Hr (approx.):
          • 184 BTU/Hr.

    CE Compliant

    Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
    Name Qty Description Agency Listings
    Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
    THC2 1 Trove2 Backplane for Altronix/Hartmann
    AL1024ULXB2 1 Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
    AL1012ULXB 1 Power Supply Charger, Single Fused Output, 12VDC @ 10A, 115VAC, Board
    ACMS8 2 Dual Input Access Power Controller, 8 Fuse Protected Outputs, Board
    Enclosure:
    • Wall mount enclosure for indoor use.
    • Accommodates up to two (2) 12VDC/7AH Batteries.
    • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
    • 3/4" and 1" combination knockouts.
    Weights (approximate):
    • Product Weight: 41.3 Lbs. (18.2 kg).
    • Shipping Weight: 45.05 Lbs. (19.9 kg).
    Configure Trove Print

    Access controllers not included

    *Batteries sold separately
