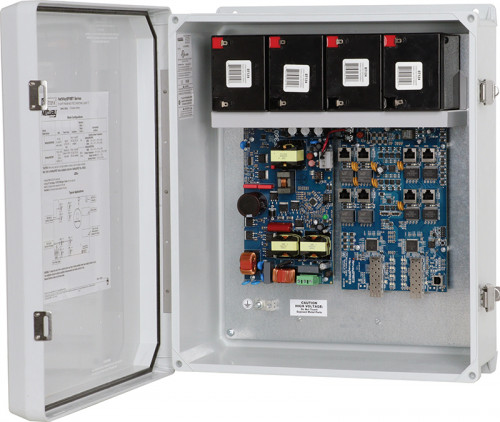

NetWaySP8BTWPX

8-port Hardened PoE Switch (NetWaySP8BTB):

Input

• Voltage: 115VAC, 60Hz, 3.5A or 230VAC, 50/60Hz, 2A.
• Input Fuse: 5A/250V

Output

• Voltage Range: 54VDC/360W
• Current: 6.4A continuous supply current
• Maximum Power 360W total power (refer to operating temperature)Integral surge protection

SFP Ports:

• Two (2) Gigabit SFP port

Ethernet Ports:

• Eight (8) 10/100/1000 Mbps ports
• Connectivity: RJ45, auto-crossover
• Wire type: 4-pair CAT5e or higher structured cable
• Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation

Indicators (LED)

• Individual PoE On LEDs for each port
• Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port
• ALOS LED indicates fiber connection for SFP port
• Heartbeat LED indicates proper operation of the unit

LINQ Technology:

• Remote network management allows for camera/device reset and diagnostic monitoring
• Provides local and/or remote access to critical information via LAN/WAN
• Email and Windows Dashboard Alert notifications report real-time events
• Event log tracks history

VLAN:

• Multiple management VLAN assignment
• 802.1Q Tagged VLAN
• Up to 10 VLAN groups. ID Range 2-4095

Power Supply/Charger (POE360):

Battery Charging

• Type: Sealed lead acid or gel type
• Failover: Upon AC loss, instantaneous
• Charging Circuit: 48VDC, 0.75A
• (Batteries are sold separately)

Environmental

• Temperature:

  • Operating (360W): - 30° C to 65° C ( - 22° F to 149° F).
  • Operating (240W): - 30° C to 70° C ( - 22° F to 158° F).
• Storage: - 30° C to 85° C ( - 22° F to 185° F).
• Relative Humidity: 85% +/- 5%

Operating Altitude

• - 304.8 to 2,000m.
