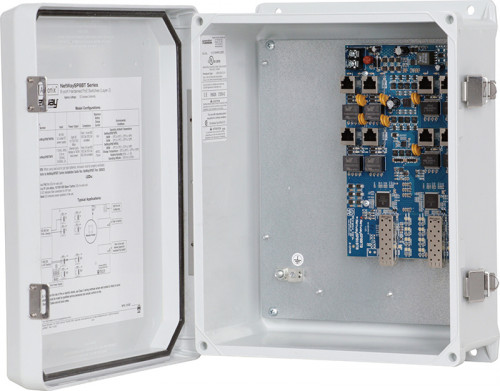

NetWaySP8BTWPXN

8-port Managed Hardened 4PPoE (802.3bt) Switch (uses external power supply); NEMA4/4X, IP66 rated Outdoor enclosure.

For unmanaged switch see model NetWaySP81BTWPXN

Altronix NetWaySP8BTWPXN 8-port hardened switch board supports up to four (4) IP devices rated up to 90W and four (4) rated up to 30W (360W total power). It is equipped with two (2) 1Gb SFP ports to transmit data at long distances, for deploying the latest IP devices in remote locations. Embedded LINQ Technology allows to monitor, control, and report power and diagnostics from anywhere.

  • Input
    • 54VDC from POE360
  • Output
    • Eight (8) 10/100/1000 Mbps Ethernet ports
    • - Four (4) ports rated at 90W each (IEEE 802.3bt compliant)
    • - Four (4) ports rated at 30W each (IEEE 802.3af/802.3at compliant)
    • - 360W total power max.
  • SFP Ports:
    • Two (2) Gigabit SFP port
  • Ethernet Ports:
    • Eight (8) 10/100/1000 Mbps ports
    • Connectivity: RJ45, auto-crossover
    • Wire type: 4-pair CAT5e or higher structured cable
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
  • Indicators (LED)
    • Individual PoE On LEDs for each port
    • Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port
    • ALOS LED indicates fiber connection for SFP port
    • Heartbeat LED indicates proper operation of the unit
  • LINQ Technology:
    • Remote network management allows for camera/device reset and diagnostic monitoring
    • Provides local and/or remote access to critical information via LAN/WAN
    • Email and Windows Dashboard Alert notifications report real-time events
    • Event log tracks history
  • VLAN:
    • Multiple management VLAN assignment
    • 802.1Q Tagged VLAN
    • Up to 10 VLAN groups. ID Range 2-4095
  • Temperature
    • 360W: – 30ºC to 70ºC (– 22ºF to 158ºF)
    • Storage: - 30° C to 85° C ( - 22° F to 185° F).
    • Relative Humidity: 85% +/- 5%
  • Operating Altitude
    • - 304.8 to 2,000m.

CE Compliant
Enclosure:
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
  • Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Weights (approximate):
  • Product Weight: 10.5 Lbs. (4.76 kg).
  • Shipping Weight: 11.9 Lbs. (5.4 kg).
