NetWaySP8BTB

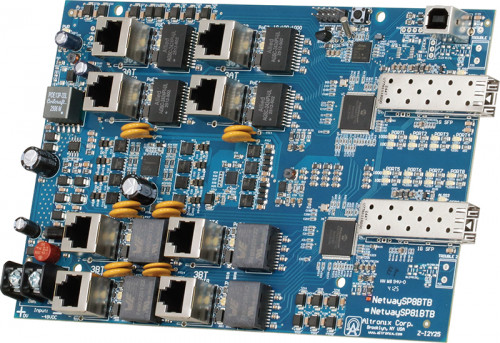

Dual 1G Fiber SFP, 8 ports: 90W per port (360W total power), Hardened 802.3bt 4PPoE Switch - Board Only, LINQ

Altronix NetWaySP8BTB 8-port hardened switch board supports up to four (4) IP devices rated up to 90W and four (4) rated up to 30W (360W total power). It is equipped with two (2) 1Gb SFP ports to transmit data at long distances, for deploying the latest IP devices in remote locations. NetWaySP8BTB accommodates single/multi-mode fiber or hybrid cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum head-end media converters/injectors. Embedded LINQ Technology allows to monitor, control, and report power and diagnostics from anywhere.

  • Input
    • Voltage: 48V-56V (UL Listed ITE power supply)
  • Output
    • Eight (8) 10/100/1000 Mbps Ethernet ports
    • - Four (4) ports rated at 90W each (IEEE 802.3bt compliant)
    • - Four (4) ports rated at 30W each (IEEE 802.3af/802.3at compliant)
    • - 360W total power max.
  • SFP Ports:
    • Two (2) Gigabit SFP port
  • Ethernet Ports:
    • Eight (8) 10/100/1000 Mbps ports
    • Connectivity: RJ45, auto-crossover
    • Wire type: 4-pair CAT5e or higher structured cable
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
  • Indicators (LED)
    • Individual PoE On LEDs for each port
    • Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port
    • ALOS LED indicates fiber connection for SFP port
    • Heartbeat LED indicates proper operation of the unit
  • LINQ Technology:
    • Remote network management allows for camera/device reset and diagnostic monitoring
    • Provides local and/or remote access to critical information via LAN/WAN
    • Email and Windows Dashboard Alert notifications report real-time events
    • Event log tracks history
  • VLAN:
    • Multiple management VLAN assignment
    • 802.1Q Tagged VLAN
    • Up to 10 VLAN groups. ID Range 2-4095
  • Environmental
      • Temperature:
        • Operating (360W): - 40° C to 50° C ( - 40° F to 122° F).
        • Operating (240W): - 40° C to 55° C ( - 40° F to 131° F).
        • Operating (180W): - 40° C to 65° C ( - 40° F to 149° F).
        • Operating (150W): - 40° C to 75° C ( - 40° F to 167° F).
    • Storage: - 40° C to 85° C ( - 40° F to 185° F).
    • Relative Humidity: 85% +/- 5%
  • Operating Altitude
    • - 304.8 to 2,000m.
  • Mounting hardware is included

    CE Compliant
    Dimensions (approximate):
    • 0.625"W x 5.2"L x 8"H (15.9 mm W x 132.1 mm L x 203.2 mm H).
    Weights (approximate):
    • Product Weight: 0.45 Lbs. (0.2 kg).
    • Shipping Weight: 0.75 Lbs. (0.34 kg).
